VICF S0300UMV00 725 3 GXG UM W/1 1/4 UTD ARV BTFL AND HS GL317725-A-V-H
VICF S0300UMV00 725 3 GXG UM W/1 1/4 UTD ARV BTFL AND HS GL317725-A-V-H

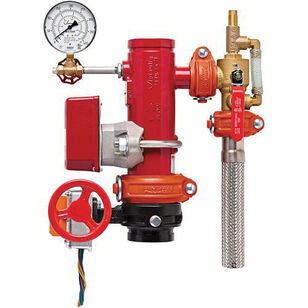

Victaulic® Universal Manifold Assembly, UM Series, 3 in Nominal, Grooved Connection, 300 psi, 14.88 in Inlet to Outlet Length, 6.13 in Top to Inlet Center, 298 Cv Flow Coefficient (Cv), Material Standard: ASTM A536 Grade 65-45-12, Iron Body, 18-1/2 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,837.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
ApplicationFor fire protection system control module includes test and drain valve, waterflow detector, pressure gauge, flexible drain connection and adjustable pressure relief valve
Body MaterialIron
Connection TypeGrooved
Dimensions18-1/2 " H
Domestic/ImportDomestic
Flow Coefficient (Cv)298
IncludesSeries UTD (Universal Test Drain) with Integrated Series ARV (Adjustable Relief Valve), Quick Drain Hose, Vane-Type Flow Switch, Saddle-Type 2 in VSR Flow Switch and System Side Pressure Gauge
Inlet to Outlet Length14.88
Material StandardASTM A536 Grade 65-45-12
Nominal Size3
Pressure Rating300
SeriesUM Series
Top to Inlet Center6.13
Additional Information
cULus Listed|FM Approved
Features & Benefits
- Universal manifold assembly incorporating a flow switch, test drain, system pressure gauge and pressure relief valve
VICF S0300UMV00 725 3 GXG UM W/1 1/4 UTD ARV BTFL AND HS GL317725-A-V-H
BrandVictaulic®
MFG #S0300UMV00
Keller #1221108
My Part ##
Last Ordered#
$2,837.00 / ea
