VICF S0400UMV00 730 4 GXG UM W/2 UTD ARV BTFL AND HS GL317730-A-V-H
VICF S0400UMV00 730 4 GXG UM W/2 UTD ARV BTFL AND HS GL317730-A-V-H

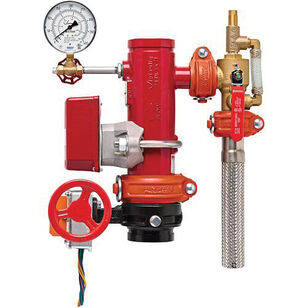

Victaulic® Universal Manifold Assembly, UM Series, 4 in Nominal, Grooved Connection, 300 psi, 17.88 in Inlet to Outlet Length, 6.38 in Top to Inlet Center, 964.95 Cv Flow Coefficient (Cv), Material Standard: ASTM A536 Grade 65-45-12, Iron Body, 20.63 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,296.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
ApplicationFor fire protection system control module includes test and drain valve, waterflow detector, pressure gauge, flexible drain connection and adjustable pressure relief valve
Body MaterialIron
Connection TypeGrooved
Dimensions20.63 " H
Domestic/ImportDomestic
Flow Coefficient (Cv)964.95
IncludesSeries UTD (Universal Test Drain) with Integrated Series ARV (Adjustable Relief Valve), Quick Drain Hose, Vane-Type Flow Switch, Saddle-Type 2 in VSR Flow Switch and System Side Pressure Gauge
Inlet to Outlet Length17.88
Material StandardASTM A536 Grade 65-45-12
Nominal Size4
Pressure Rating300
SeriesUM Series
Top to Inlet Center6.38
Additional Information
cULus Listed|FM Approved
Features & Benefits
- Universal manifold assembly incorporating a flow switch, test drain, system pressure gauge and pressure relief valve
VICF S0400UMV00 730 4 GXG UM W/2 UTD ARV BTFL AND HS GL317730-A-V-H
BrandVictaulic®
MFG #S0400UMV00
Keller #1221148
