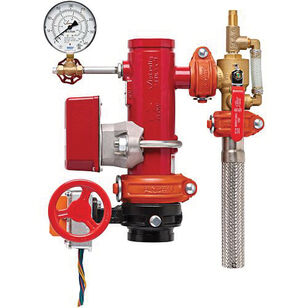

Victaulic® UM Series S0600UMV00 Universal Manifold Assembly, 6 in Nominal, Grooved, 300 psi, Iron Body
Victaulic® UM Series S0600UMV00 Universal Manifold Assembly, 6 in Nominal, Grooved, 300 psi, Iron Body
Victaulic® Universal Manifold Assembly, UM Series, 6 in Nominal, Grooved Connection, 300 psi, 19 in Inlet to Outlet Length, 7.38 in Top to Inlet Center, 1472.2 Cv Flow Coefficient (Cv), Material Standard: ASTM A536 Grade 65-45-12, Iron Body, 21-1/2 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,589.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
ApplicationFor fire protection system control module includes test and drain valve, waterflow detector, pressure gauge, flexible drain connection and adjustable pressure relief valve
Body MaterialIron
Connection TypeGrooved
Dimensions21-1/2 " H
Domestic/ImportDomestic
Flow Coefficient (Cv)1472.2
IncludesSeries UTD (Universal Test Drain) with Integrated Series ARV (Adjustable Relief Valve), Quick Drain Hose, Vane-Type Flow Switch, Saddle-Type 2 in VSR Flow Switch and System Side Pressure Gauge
IndustryFire Protection
Inlet to Outlet Length19
Material StandardASTM A536 Grade 65-45-12
Nominal Size6
Pressure Rating300
SeriesUM Series
Top to Inlet Center7.38
Additional Information
cULus Listed|FM Approved
Features & Benefits
- Universal manifold assembly incorporating a flow switch, test drain, system pressure gauge and pressure relief valve
Victaulic® UM Series S0600UMV00 Universal Manifold Assembly, 6 in Nominal, Grooved, 300 psi, Iron Body
BrandVictaulic®
MFG #S0600UMV00
Keller #1221155
My Part ##
Last Ordered#
$3,589.00 / ea
