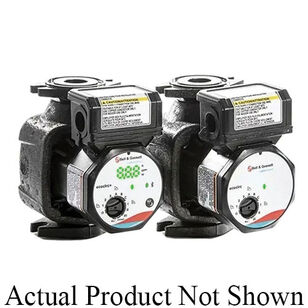

Bell & Gossett ecocirc+ 20-18 60B0B1004 Flanged Efficiency Wet Rotor Circulator With Electronically Commutated Motor
Bell & Gossett ecocirc+ 20-18 60B0B1004 Flanged Efficiency Wet Rotor Circulator With Electronically Commutated Motor
Bell & Gossett Flanged Efficiency Wet Rotor Circulator, 18 gpm Flow Rate, 20 ft Maximum Head, 0 to 70 W, 115 V, 0.06 to 1.02 A, 50/60 Hz, 145 psi Maximum Pressure, 1 ph Phase, 14 to 230 deg F, IP44 Class 1/NEMA Type 2 Enclosure, Stainless Steel, 6.38 in H x 4.29 in W x 5.9 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$977.76Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBell & Gossett
Amperage Rating0.06 to 1.02
Dimensions6.38 " H x 4.29 " W x 5.9 " D
Enclosure TypeIP44 Class 1/NEMA Type 2
Flow Rate18
Frequency Rating50/60
MaterialStainless Steel
Maximum Head20
Maximum Pressure145
Phase1
Power Rating0 to 70
Temperature Rating14 to 230
Voltage Rating115
Additional Information
CSA C22.2 File No. 108|NSF/ANSI 61|UL 1004-1/1004-7/60730-1/778
Features & Benefits
- Maximum of 20 feet of head or 18 GPM 70W maximum power 3 modes - proportional pressure, constant pressure, or adjustable speed control Fluid temperature: 14-230 deg F CircGuard™- complete integrated system protection One turn knob and multicolor LED display for easy reading and setting of the pump 0-10V input T/DeltaT temperature control eAdapt autolearn and Night Mode Digital display
Marketing Information
Xylem's next generation variable speed ECM smart circulator, ecocirc® 20-18 from Bell & Gossett, is a superior cast iron or stainless-steel product for HVAC applications. All models feature CircGuard™ for complete integrated system protection. Taking it a step further is our ecocirc+ 20-18 model featuring wireless connectivity directly to your mobile device. The ecocirc+ 20-18 also features T/DeltaT temperature control, eAdapt autolearn, Night Mode and a digital display. Combine the ecocirc 20-18 and ecocirc+ 20-18 circulators with our incredible service network, and you have a winning combination for a wide range of applications.
Bell & Gossett ecocirc+ 20-18 60B0B1004 Flanged Efficiency Wet Rotor Circulator With Electronically Commutated Motor
BrandBell & Gossett
MFG #60B0B1004
Keller #1221877
My Part ##
Last Ordered#
$977.76Â /Â ea
