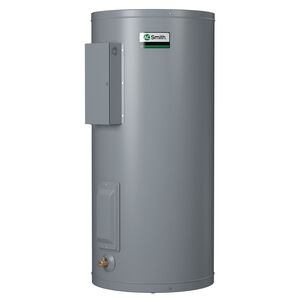

AO Smith® Dura-Power™ 102 Series DEL-20S Electric Water Heater, 20 gal, 6 kW, 1 ph, 208 V
AO Smith® Dura-Power™ 102 Series DEL-20S Electric Water Heater, 20 gal, 6 kW, 1 ph, 208 V
AO Smith® Dura-Power™ Electric Water Heater, 102 Series, 20 gal Capacity, 6 kW, 19 to 68 gph Recovery Rate, 1 Elements, 6000 W Element Wattage, 28.8 A, 208 V, 60 Hz, 1 ph Phase, FNPT Connection, 3/4 in Connection, 150 psi, Finish: Baked Enamel, 110 to 170 deg F, 21-3/4 in Dia x 22-1/4 in H, Zinc-Plated Sheath Element, Copper Element
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandAO Smith®
Amperage Rating28.8
Capacity20
Connection Size3/4"
Connection TypeFNPT
Dimensions21-3/4 " Dia x 22-1/4 " H
Element MaterialCopper
Element TypeZinc-Plated Sheath
Element Wattage6000
FinishBaked Enamel
Frequency Rating60
IndustryPlumbing
Number of Elements1
Phase1
Power Rating6
Pressure Rating150
Recovery Rate19 to 68
Series102 Series
Temperature Rating110 to 170
Voltage Rating208
Additional Information
CSA Certified|cULus Listed
Features & Benefits
- Designed for use as a recovery heater having its own storage tank Tank interior is coated with glass specially designed by AO Smith® for water heater use Zinc-plated copper sheaths for longer life Medium-watt density means lower surface temperature to minimize scale build-up and more surface to heat water Factory installed terminal block Temperature control (adjustable through a range of 130 to 170 deg F on single element and 120 to 181 deg F on dual element) and manual reset high-temperature cut-off per element Simplified circuitry, color-coded for ease of service Anode rod for maximum corrosion protection Cabinet has bonderized undercoat with baked enamel finish Top inlet and outlet openings
AO Smith® Dura-Power™ 102 Series DEL-20S Electric Water Heater, 20 gal, 6 kW, 1 ph, 208 V
BrandAO Smith®
MFG #DEL-20S
Keller #1222005
My Part ##
Last Ordered#
Call for Price / ea
