cULus Listed|AHRI Certified

• The pre-painted, sheet metal cabinet uses 18 ga material for structural components with an under lying coat of G60 electro deposition powder coating that is tested to withstand a rigorous 500 hr salt spray test, per ASTM B117 Inherently protected motors are mounted inside of insulated cabinet to reduce motor noise Allows for horizontal installation in most standard drop ceiling applications and the movement of units through most standard doorways for addition or replacement work 1 in throwaway filters are standard, but filter racks are designed to accept either 1 in or 2 in filters Two circuit, interlaced row split coils are constructed with copper tubes and aluminum fins mechanically bonded to the tubes for maximum heat transfer capabilities All coil assemblies are leak tested up to 450 psig internal pressure prior to installation into units Field piping connections are made through a fixed post between two side access panels on either side of the unit Allows flexibility to meet most field conditions as well as full accessibility after the installation is complete Units may be used with two straight cool condensing units or single circuit manifolded in the field using the copper fittings shipped with each unit Provides two-stage airflow for improved part load efficiency The galvanized steel drain pan is designed to trap condensate in either vertical or horizontal installations Condensate drain connections are located on both sides of the unit allowing complete flexibility to meet most field conditions Two removable panels on top and each side of the unit are easily removed for access to motors, blowers, sheaves and filters All models are designed for either application and can be installed in either position as supplied from the factory All units are run tested at the factory prior to shipment, units are shipped with a holding charge of nitrogen It has two TX valves with internal check valves that allow reverse flow to occur, providing superior control during heating and cooling cycles The RHCLP air handler has been rated and certified to operate with matching size RPCL heat pumps

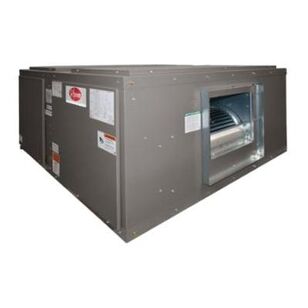

Rheem® commercial air handlers bring a higher level of comfort to your business while keeping utility bills low. Our versatile, low profile design accommodates a variety of business needs, including cooling only operation or both cooling and heating, as well as horizontal or vertical installation. Plus, the insulated cabinet reduces motor noise for quiet operation.
