PVCPR 854-040 4IN SKT S80 V/S FLG
PVCPR 854-040 4IN SKT S80 V/S FLG

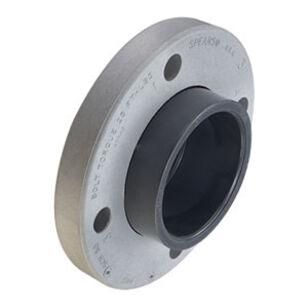

Spears® Van Stone Style Flange, Flange Fitting, 4 in Connection Size 1, Connection Type 1: Socket, 4 in Connection Size 2, Connection Type 2: Socket, Socket|Socket Connection, PVC, Material Construction: Molded PVC, Gray, 8 Bolt Holes, 5/8 in Bolt Hole Diameter, Pressure Class: 150 lb, 150 psi, 73 deg F, Additional Information: 9 in OD, SCH 80 Schedule Rating, 7-1/2 in Dia Bolt Circle, 2-1/2 in L Through Hub
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$143.07 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandKeller Approved
ApplicationFor potable water service
Bolt Hole Diameter5/8"
ColorGray
Connection Size 14"
Connection Size 24"
Connection TypeSocket|Socket
Connection Type 1Socket
Connection Type 2Socket
Fitting TypeFlange
MaterialPVC
Material ConstructionMolded PVC
Number of Bolt Holes8
Pressure Class150 lb
Pressure Rating150 psi
Temperature Rating73 deg F
WarrantyLimited Lifetime
Additional Information
9 in OD, SCH 80 Schedule Rating, 7-1/2 in Dia Bolt Circle, 2-1/2 in L Through Hub
Features & Benefits
- Unlike metal, PVC fittings never rust, scale or pit and will provide many years of maintenance-free service and extended system life
- PVC thermoplastic can handle fluids at service temperatures up to 140 deg F, allowing a wide range of process applications, including corrosive fluids
- Substantially lower material costs than steel alloys or lined steel, combined with lighter weight and ease of installation, can reduce installation costs by as much as 60% over conventional metal systems
- Smooth interior walls result in lower pressure loss and higher volume than conventional metal systems
- Extra large, hard-to-find and custom configurations are fabricated from NSF certified pipe
- Fittings are engineered and tested to provide full pressure handling capabilities according to Spears® specifications
Documents
Marketing Information
Spears® SCH 80 PVC product designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting. Material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Resulting products are subjected to numerous verification tests to assure obtaining the very best PVC fittings available.
PVCPR 854-040 4IN SKT S80 V/S FLG
BrandKeller Approved
MFG #854-040
Keller #122375
My Part ##
Last Ordered#
$143.07 / ea
