• The elastomeric motor mounting gasket dampens vibration The red, yellow and green indicator lights show the pump status The green shows the power applied to the pump, yellow shows the pump is running and red is for high level alarm The rubber feet that support the CP-22 condensate pump help to dampen vibration which reduces noise The four inlet versus two or three on other pumps provide the greatest installation versatility Inlet holes have a reinforced wall for durability The CP-22 condensate pump features a removable check valve which allows for hassle-free cleaning The 1/4 in quick-connect terminals provide easy connection to the built-in overflow switch Two terminals are provided allowing the installer flexibility to connect the air handler shut down The switch features SPDT isolated contacts ready for connection to building automation systems The CP-22 condensate pump comes equipped with shatter-proof stainless steel hang tabs which have hole and slot design for easy mounting The tabs are located on convenient 8 in centers

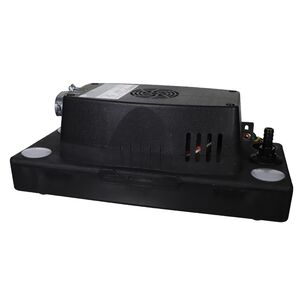

The Asurity™ CP-22LP-230-P condensate pump is only 4-3/8 in tall, a great option when space is at a premium. The 230 V pump features 22 ft of lift, vibration dampening feet and motor mounts, check valve and overflow switch. Reservoir holds 1/3 gal of water. Includes power fitting accepting 1/2 in flexible conduit. Suitable for use with condensate up to 160 deg F. Asurity™ - your complete system for condensate management. This product was made by DiversiTech®.
