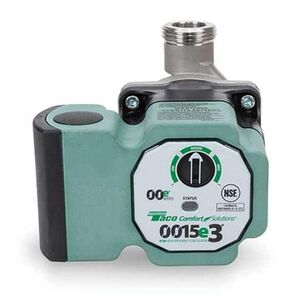

Taco Comfort Solutions® 0015e3® Series 0015E3-SU High-Efficiency Circulator, 16 gpm, 44 W, 120 VAC, 0.54 A, 60 Hz
Taco Comfort Solutions® 0015e3® Series 0015E3-SU High-Efficiency Circulator, 16 gpm, 44 W, 120 VAC, 0.54 A, 60 Hz
Taco Comfort Solutions® High-Efficiency Circulator, 0015e3® Series, 16 gpm Flow Rate, 18 ft Maximum Head, 44 W, 120 VAC, 0.54 A, 60 Hz, 150 psi Maximum Pressure, 1589 to 4830 rpm Motor Speed Rating, 1/8 hp, 1/2 in, 3/4 in, 1 in, 1-1/4 in Connection, Union Connection, 1 ph Phase, 36 to 230 deg F, Stainless Steel, 5-1/16 in L x 5 in W x 5-1/8 in H, Additional Information: ECM, Permanent Magnet Motor, Composite Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,052.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Additional InformationECM, Permanent Magnet Motor, Composite Impeller Material
Amperage Rating0.54
Connection Size1/2 ", 3/4 ", 1 ", 1-1/4 "
Connection TypeUnion
Dimensions5-1/16 " L x 5 " W x 5-1/8 " H
Flow Rate16
Frequency Rating60
HP Rating1/8
MaterialStainless Steel
Maximum Head18
Maximum Pressure150
Motor Speed Rating1589 to 4830
Phase1
Power Rating44
Series0015e3 Series
Temperature Rating36 to 230
Voltage Rating120
Additional Information
cULus Listed|FCC Approved|NSF/ANSI 61/372
Features & Benefits
- SureStart® - a Taco exclusive feature is your no-callback safety net, automatically purging air and unblocking the pump to keep it trouble-free High-efficiency ECM motor uses up to 85% less electricity Three easy settings Dual electrical knock-outs 6 in stranded wire leads for no-fumble wiring Double insulated, no ground necessary Whisper quiet operation Integral Flow Check (IFC®) included
Documents
Marketing Information
The Taco 0015e3® ECM high-efficiency circulator is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It’s ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. With three easy settings, the 0015e3® ECM high-efficiency circulator delivers performance, reliability and ease of installation that made the 00® famous. Install it, forget it!®.
Taco Comfort Solutions® 0015e3® Series 0015E3-SU High-Efficiency Circulator, 16 gpm, 44 W, 120 VAC, 0.54 A, 60 Hz
BrandTaco Comfort Solutions®
MFG #0015E3-SU
Keller #1225488
My Part ##
Last Ordered#
$1,052.00 / ea
