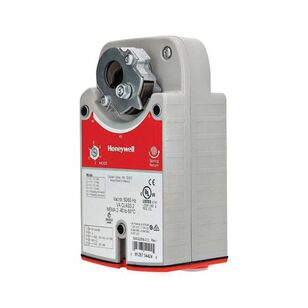

Honeywell MS3105 MS3105J3030 Direct Coupled Actuator, 24 VAC/VDC, 90 s Timing, Plastic
Honeywell MS3105 MS3105J3030 Direct Coupled Actuator, 24 VAC/VDC, 90 s Timing, Plastic
Honeywell Direct Coupled Actuator, Model: MS3105, 24 VAC/VDC, 50/60 Hz, VA Rating: 6/3 VA, 18 to 14 AWG Electrical Connection, 90 s Timing, Plastic, 44 in-lb Torque, 95 kOhm Input, 60 dB Noise Level, -40 to 150 deg F, IP54, NEMA 2 Enclosure, 5 to 95 % Humidity Rating, 6-61/64 in L x 3-55/64 in W x 3-5/32 in H, NPSM Connection, 60000 cycles Operating Cycles, Self-Centering Shaft Adapter, 95 deg Stroke
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$523.25Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Connection TypeNPSM
Dimensions6-61/64 " L x 3-55/64 " W x 3-5/32 " H
Electrical Connection18 to 14
Enclosure TypeIP54, NEMA 2
Frequency Rating50/60
Humidity Rating5 to 95
IndustryPlumbing
Input Impedance95
MaterialPlastic
ModelMS3105
Noise Level60
Operating Cycles60000
Shaft AdapterSelf-Centering
Stroke95
Temperature Rating-40 to 150
Timing Range90
Torque Rating44
VA Rating6/3
Voltage Rating24
Additional Information
CE Marked|C-Tick Compliant|cUL Listed|EMC 2004/108|IEC 60730-1 and Part 2-14|UL 873|UL 1097
Features & Benefits
- Brushless DC submotor with electronic stall protection on all models Self-centering shaft adaptor (shaft coupling) for wide range of shaft sizes Models available for use with two-position, SPST, line- or low-voltage controls Models available with combined floating and modulating control in a single device Models available with an internal end switch Access cover to facilitate connectivity Durable plastic housing with built-in mechanical end limits Spring return direction field selectable Shaft position indicator and scale Integral 1/2 in NPSM conduit connection on some models
Documents
Marketing Information
MS3105 Spring Return Direct Coupled Actuators (DCA) are used within heating, ventilating, and air-conditioning (HVAC) systems. They can drive a variety of quarter-turn, final control elements requiring spring return fail-safe operation. Applications include volume control dampers, mounted directly to the drive shaft or remotely (with the use of accessory hardware), quarter-turn rotary valves, such as ball or butterfly valves mounted directly to the drive shaft and linear stroke globe or cage valves mounted with linkages to provide linear actuation.
Honeywell MS3105 MS3105J3030 Direct Coupled Actuator, 24 VAC/VDC, 90 s Timing, Plastic
BrandHoneywell
MFG #MS3105J3030
Keller #1226121
