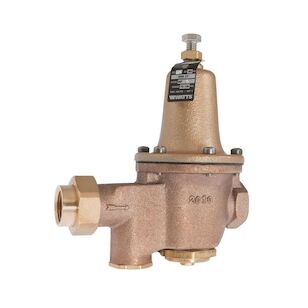

WATTS® LFU5B-Z3 Series 0009159 Water Pressure Reducing Valve With Built-In Thermal Expansion Bypass, 1 in Nominal
WATTS® LFU5B-Z3 Series 0009159 Water Pressure Reducing Valve With Built-In Thermal Expansion Bypass, 1 in Nominal
WATTS® Water Pressure Reducing Valve With Built-In Thermal Expansion Bypass, LFU5B-Z3 Series, 1 in Nominal, FNPT Union x FNPT Connection, 300 psi, Water Media, 6-3/4 in Inlet to Outlet Length, Brass Body, Stainless Steel Seat, EPDM Disc, Stainless Steel Trim, Lead-Free, 33 to 160 deg F, 4 in Dia x 7-3/8 in H, Additional Information: 10 to 35 psi Low Pressure Range, 50 psi Pressure Setting, 25 to 75 psi Adjustable Reduced Pressure Range, Stainless Steel Strainer
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,337.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Additional Information10 to 35 psi Low Pressure Range, 50 psi Pressure Setting, 25 to 75 psi Adjustable Reduced Pressure Range, Stainless Steel Strainer
Body MaterialBrass
Connection TypeFNPT Union x FNPT
Dimensions4 " Dia x 7-3/8 " H
Disc MaterialEPDM
IndustryPlumbing
Inlet to Outlet Length6-3/4
Lead-FreeYes
MediaWater
Nominal Size1
Pressure Rating300
Seat MaterialStainless Steel
SeriesLFU5B-Z3 Series
Temperature Rating33 to 160
Trim MaterialStainless Steel
Shipping Dimensions (L x W x H)6.75" x 4" x 8.25"
Additional Information
ANSI A112.26.2|ASSE 1003|CSA B356|IAPMO Listed|NSF 61-G|UPC Certified
Features & Benefits
- Low pressure applications and gauge tapping with plug Integral stainless steel strainer removable for cleaning Serviceable in line without special tools NPT threaded female union inlet by NPT female outlet
Documents
Marketing Information
This 1 inch lead free high performance water pressure reducing valve is equipped for low pressure ranges with gauge tapping. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The low pressure range is 10 to 35 psi (69 to 241 kPa) with the standard setting at 30 psi (207 kPa).
WATTS® LFU5B-Z3 Series 0009159 Water Pressure Reducing Valve With Built-In Thermal Expansion Bypass, 1 in Nominal
BrandWATTS®
MFG #0009159
Keller #1226758
