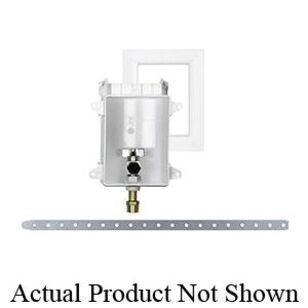

SIOUX 696-G1000VF LF OUTLET BOX
SIOUX 696-G1000VF LF OUTLET BOX
Sioux Chief OxBox™ Ice Maker Outlet Box, 696 Series, 1/2 x 1/4 in Connection, PEX x Compression Connection, Quarter-Turn Valve, 4 in Box Width, 3-1/2 in Box Depth, 5-1/2 in Box Height, ABS Box, 5-7/8 in Faceplate Width, 7-1/4 in Faceplate Height, ABS Faceplate, Brass Valve
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$38.34 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Box Depth3-1/2
Box Height5-1/2
Box MaterialABS
Box Width4
Connection Size1/2 x 1/4
Connection TypePEX x Compression
Faceplate Height7-1/4
Faceplate MaterialABS
Faceplate Width5-7/8
IndustryPlumbing
Series696 Series
Valve MaterialBrass
Valve TypeQuarter-Turn
Additional Information
ASME A112.18.1|ASSE 1010|cUPC Certified|IAPMO Certified|Lead-Free Compliant|NSF 372
Features & Benefits
- Durable ABS box mounts securely to stud or between studs Quarter-turn ball valve with 1/4" OD compression connection Included debris covers protect box/valve from dust, mud, and paint
Documents
Marketing Information
Sioux Chief 696 series OxBox™ outlet box shall be used where necessary in plumbing systems. Unit shall allow for mounting with supply lines from top or bottom, on-stud or between-studs. Unit shall include plated, 1/4-turn valve with 1/4" compression outlet. Valve outlets shall be provided with tamper resistant test caps. Metal support bracket can be installed into tracks of box. Designed in accordance with IAPMO PS 54-2021a.
SIOUX 696-G1000VF LF OUTLET BOX
BrandSioux Chief
MFG #696-G1000VF
Keller #1228408
My Part ##
Last Ordered#
$38.34 / ea
