HW ZD26X12TZ 26X12 DAMPER
HW ZD26X12TZ 26X12 DAMPER

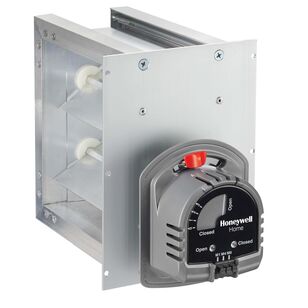

Honeywell Home Damper, Series: ZD Series, 26 x 12 in, Rectangle, 24 VAC, 0.32 A, 90 deg Rotation, 30 sec Power Open/10 sec Spring Return Timing, Parallel Blade, Power Open/Spring Closed Motor, M1-Power/M6-Common/M4-LED Indication Terminal, 40 to 140 deg F, Aluminum
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$808.56Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
Brandresideo
Amperage Rating0.32
Blade ActionParallel
Electrical ConnectionsM1-Power/M6-Common/M4-LED Indication Terminal
IndustryHVAC
MaterialAluminum
Motor TypePower Open/Spring Closed
Rotation Angle90
SeriesZD Series
ShapeRectangle
Size26 x 12
Temperature Rating40 to 140
Timing30 sec Power Open/10 sec Spring Return
Voltage Rating24
Features & Benefits
- Mechanical visual position indicator for damper status Solid construction using extruded aluminum frame and blades Parallel blade design for low leakage performance Simple, easy-to-wire, 2-wire installation Reliable, strong, 24 VAC spring-return motor Fail-safe, normally open operation Damper can be installed in any orientation mounting on side of the duct
Marketing Information
The ZD is a power close and spring open damper. It has a 24 V motor used to control circulating air in HVAC systems and used when a normally-open damper is required. The ZD is typically used with the TrueZONE™ and other electronic zoning systems.
HW ZD26X12TZ 26X12 DAMPER
Brandresideo
MFG #ZD26X12TZ/U
Keller #1229438
