ADA Compliant|CSA B45.5|cUPC Certified|IAPMO PS 106-2015e1|IAPMO Z124-2011|IPC Certified|IRC Certified|NPC Compliant

• Made from compression molded glass-fiber reinforced plastic (GRP) for superior strength Waffle underside ensures rigidity while being lightweight Install on wooden joists (no need to notch, lower or alter joists), sub-floor, or concrete Can be cut down to size on all sides using standard power tools (within 6″ of drain) Extend size of pitch to comply with ADA regulations using Pitch Extension panels Rotate off-center drain hole to avoid conflicts between drain and any sub-floor obstructions 4 pre-sloped gradient planes direct water flow towards drain 2% per foot or greater gradient (varies due to length of pitch) 7/8" thick around perimeter 1-3/4" wide leveling rim around perimeter with pre-bored, countersunk pilot holes Finish with tile or stone (between 1/4"-1" thick) or commercial-grade weldable vinyl flooring For tile that is 2" x 2" or smaller, conform to the pitched contours of the base; for tile larger than 2" x 2", make valley cuts so the tile lays properly on all pre-pitched surfaces

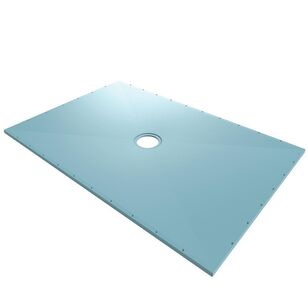

Curbless Tuff Form shower bases are made from lightweight yet incredibly strong compression molded glass-fiber reinforced plastic (GRP) which offers superior support for wheelchair users and/or those needing assistance with showering, and is the perfect foundation for ceramic tile, natural stone, or weldable vinyl flooring. Showers built on Tuff Form shower bases offer the timeless advantages of zero-entry access which is designed to be wheelchair and disability friendly, as well as easier to clean and safer to use for the whole family, for years to come.
