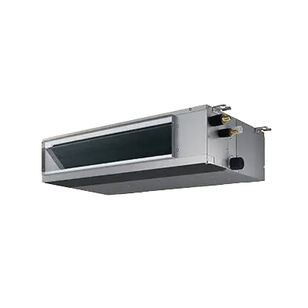

Samsung AC009BNLDCH/AA Single-Zone Slim Ducted Split System Indoor Unit, 208-230 V, 5.9/9 A, 1 ph, Steel
Samsung AC009BNLDCH/AA Single-Zone Slim Ducted Split System Indoor Unit, 208-230 V, 5.9/9 A, 1 ph, Steel
Samsung Single-Zone Slim Ducted Split System Indoor Unit, Model: AC009BNL, 208-230 V, 5.9/9 A, 60 Hz, 1 ph Phase, 3 Fan Speeds, 9000 Btu/hr Cooling, 12000 Btu/hr Heating, 1060 cfm Condenser, 283 cfm Evaporator, 14 EER Rating, 21.1 SEER, 11.3 HSPF, Connection Type: Flared, Twin BLDC Rotary Compressor, R-410A Refrigerant, 15 A Fuse Rating, 33 dBA Sound Level, Steel, Galvanized, 62 to 90 deg F Cooling, <=86 deg F Heating, 17-5/16 in Overall Length, 35-7/16 in Overall Width, 7-13/16 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,375.92Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Amperage Rating5.9/9
BTU Rating9000 Btu/hr Cooling, 12000 Btu/hr Heating
CFM Rating1060 cfm Condenser, 283 cfm Evaporator
Color/FinishGalvanized
Compressor TypeTwin BLDC Rotary
Connection TypeFlared
EER Rating14
FinishGalvanized
Frequency Rating60
Fuse Rating15
HSPF Rating11.3
MaterialSteel
ModelAC009BNL
Number of Fan Speeds3
Overall Height7-13/16
Overall Length17-5/16
Overall Width35-7/16
Phase1
Refrigerant TypeR-410A
SEER Rating21.1
Sound Level33
Temperature Rating62 to 90 deg F Cooling, <=86 deg F Heating
Voltage Rating208-230
Additional Information
AHRI Certified|cETLus Listed|ENERGY STAR Certified
Features & Benefits
- The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire High-voltage terminal block temperature sensor to disable unit in the event of power connection overheating Integral condensate pump with maximum 29" lift from bottom of the unit with check valve and float switch that disables indoor should condensate overflow be detected. Auto-restart after power loss Soft-start compressor minimizing current inrush All heat exchangers shall be mechanically bonded aluminum fin to copper tube The condensing unit heat exchanger salt spray test method: ISO-9227 - the heat exchanger showed no unusual rust or corrosion development to 500 hours. Base pan heater equipped as standard
Documents
Marketing Information
At only 7-7/8 inches thick, the Slim Duct makes installation, maintenance and repair hassle-free. Its lightweight chassis also makes installation easier than ever. The Slim Duct unit includes a built-in condensate pump as standard.
