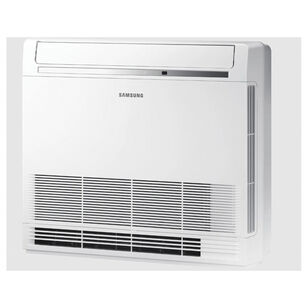

Samsung AC012BNJDCH/AA Single Zone Indoor Split System Console Unit, 208 to 230 V, 5.2 A, 10200 Btu/hr, 13000 Btu/hr BTU
Samsung AC012BNJDCH/AA Single Zone Indoor Split System Console Unit, 208 to 230 V, 5.2 A, 10200 Btu/hr, 13000 Btu/hr BTU
Samsung Single Zone Indoor Split System Console Unit, 208 to 230 V, 5.2 A, 35 W, 40 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 10200 Btu/hr, 13000 Btu/hr, 220 cfm, 254 cfm, 300 cfm, 1060 cfm Rating, 12 EER, 20.4 SEER, HSPF: 8, 1/4 in High Side, 3/8 in Low Side, 1 in ID x 1-1/4 in OD Condensate Connection Type, 15 A Fuse, Inverter Drive, 33 dB, 35 dB, 38 dB, 61 to 90 deg F Cooling, <=86 deg F Heating, 28-3/8 in Overall Width, 7-13/16 in Overall Height, Additional Information: 24-7/16 in D Dimensions, R-410A Refrigerant
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,342.44Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information24-7/16 " D Dimensions, R-410A Refrigerant
Amperage Rating5.2
BTU Rating10200 Btu/hr, 13000 Btu/hr
CFM Rating220 cfm, 254 cfm, 300 cfm, 1060 cfm
Connection Type1/4 " High Side, 3/8 " Low Side, 1 " ID x 1-1/4 " OD Condensate
Drive TypeInverter
EER Rating12
Frequency Rating60
Fuse Rating15
HSPF Rating8
IncludesWireless Controller
IndustryHVAC
Number of Fan Speeds3
Overall Height7-13/16
Overall Width28-3/8
Phase1
Power Rating35 W, 40 W
SEER Rating20.4
Sound Level33 dB, 35 dB, 38 dB
Temperature Rating61 to 90 deg F Cooling, <=86 deg F Heating
Voltage Rating208 to 230
Warranty10 Year Compressor, 10 Year Parts, 1 Year Limited Labor
Additional Information
AHRI 210/240 2017/2023|cETLus Listed|ENERGY STAR Certified|UL 94/60335-2-40
Features & Benefits
- The console unit can be installed sitting on the floor or hanging low on a wall, making it a great option for replacing a radiator in order to provide both heating and cooling in almost any space The outdoor unit shall supply power to indoor unit via 14/3 AWG power wire High voltage terminal block temperature sensor to disable unit in the event of power connection overheating Auto restart after power loss Soft start compressor minimizing current inrush Base pan heater equipped as standard All heat exchangers shall be mechanically bonded aluminum fin to copper tube The condensing unit heat exchanger salt spray test method ISO 9227 the heat exchanger showed no unusual rust or corrosion development to 500 hr The front panel shall have LED indicator lights, touch controls, IR receiver and one-motorized louver Night time quiet mode - reduction of operational sound during evening hours (automatic or manual activation) Emergency temperature output (ETO) function - when indoor unit is in error status or when room temperature exceeds configurable temperature level, the system outputs a signal to an external source, example - backup system, building management system, alert device (example - status light, warning lamp, buzzer) Maximum current control configurable from 50 to 100% via outdoor unit, wired controller or central controls System can be configured as heating/cooling, cooling only or heating only via outdoor unit option setting Indoor fan is a single turbo-type The unit shall discharge cool air from the upper outlet louver (motorized) while in cooling mode and warm air from the upper and lower (manual adjustment only) outlets while in heating mode Three-fan speed settings and auto setting Washable filter as standard Dual set temperature support when connected to MWR-WG00UN advanced wired controller and supported central control No additional interface modules/adapters are required when connecting to Samsung central control options The unit shall be operated via a wireless or wired remote control with DDC-type signal
