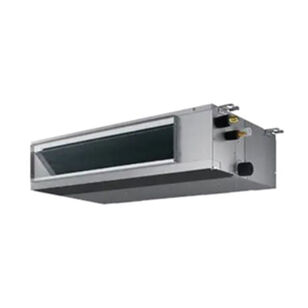

Samsung AC012BNLDCH/AA Split System Unit, 208-230 V, 10.9 A, 12000 Btu/hr, 14000 Btu/hr BTU, 1 ph, Steel
Samsung AC012BNLDCH/AA Split System Unit, 208-230 V, 10.9 A, 12000 Btu/hr, 14000 Btu/hr BTU, 1 ph, Steel
Samsung Split System Unit, 208-230 V, 10.9 A, 84 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 12000 Btu/hr, 14000 Btu/hr, 300 cfm, 353 cfm, 399 cfm CFM Rating, 11.5 EER, 19 SEER, HSPF: 9.2, Twin BLDC Rotary Compressor, R-410A, 15 A Fuse, Inverter Drive, 27 dBA, 31 dBA, 34 dBA, Steel, Galvanized, 63 to 90 deg F, <=86 deg F, 17-5/16 in Overall Length, 35-7/16 in Overall Width, 7-13/16 in Overall Height, Additional Information: 1/4 in, 3/8 in Connection, Slim Duct Single-Zone Duct
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,438.56Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional Information1/4 ", 3/8 " Connection, Slim Duct Single-Zone Duct
Amperage Rating10.9
BTU Rating12000 Btu/hr, 14000 Btu/hr
CFM Rating300 cfm, 353 cfm, 399 cfm
Compressor TypeTwin BLDC Rotary
Drive TypeInverter
EER Rating11.5
FinishGalvanized
Frequency Rating60
Fuse Rating15
HSPF Rating9.2
MaterialSteel
Number of Fan Speeds3
Overall Height7-13/16
Overall Length17-5/16
Overall Width35-7/16
Phase1
Power Rating84
Refrigerant TypeR-410A
SEER Rating19
Sound Level27 dBA, 31 dBA, 34 dBA
Temperature Rating63 to 90 deg F, <=86 deg F
Voltage Rating208-230
Warranty10 Year Compressor, 10 Year Parts, 1 Year Limited Labor
Additional Information
AHRI 210/240-2023|cETLus Listed|ENERGY STAR Certified|UL 60335-2-40
Features & Benefits
- The outdoor unit shall supply power to indoor unit via 14 AWG x 3 power wire High voltage terminal block temperature sensor to disable unit in the event of power connection overheating Integral condensate pump with maximum 29 in lift from bottom of the unit with check valve and float switch that disables indoor should condensate overflow be detected Auto-restart after power loss Soft start compressor minimizing current inrush All heat exchangers shall be mechanically bonded aluminum fin to copper tube The condensing unit heat exchanger salt spray test method ISO 9227 the heat exchanger showed no unusual rust or corrosion development to 500 hr Base pan heater equipped as standard indoor fan is sirocco-type Three-fan speed settings and auto setting Washable filter as standard Control wiring shall be two 16 AWG No additional interface modules/adapters are required when connecting to Samsung central control options The unit shall be operated via a wireless or wired remote control with DDC type signal Dual-set temperature support when connected to MWR-WG00UN advanced wired controller or central control options Wired or wireless controllers must be purchased separately The compressor shall be hermetically sealed, inverter controlled BLDC rotary type Refrigerant flow shall be controlled by an electronic expansion valve at outdoor unit
Marketing Information
At only 7-7/8 in THK, the slim duct makes installation, maintenance and repair hassle-free. Its lightweight chassis also makes installation easier than ever. The slim duct unit includes a built-in condensate pump as standard.
