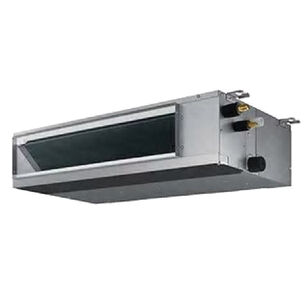

Samsung AC018BNLDCH/AA Slim Duct Indoor Unit, 208 to 230 V, 20.1 A, 18000 Btu/hr Cooling, 20000 Btu/hr Heating BTU, 1 ph
Samsung AC018BNLDCH/AA Slim Duct Indoor Unit, 208 to 230 V, 20.1 A, 18000 Btu/hr Cooling, 20000 Btu/hr Heating BTU, 1 ph
Samsung Slim Duct Indoor Unit, 208 to 230 V, 20.1 A, 125 W, 84 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 18000 Btu/hr Cooling, 20000 Btu/hr Heating, 2154 cfm Condenser, 600 cfm Evaporator CFM Rating, 12.1 EER, 20 SEER, HSPF: 7.5, Twin BLDC Rotary Compressor, R-410A, Inverter Drive, 35 dBA, Steel, Galvanized, 64 to 90 deg F Cooling, <=86 deg F Heating, 17-5/16 in Overall Length, 43-5/16 in Overall Width, 7-13/16 in Overall Height, Additional Information: Single Zone
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,800.36Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional InformationSingle Zone
Amperage Rating20.1
BTU Rating18000 Btu/hr Cooling, 20000 Btu/hr Heating
CFM Rating2154 cfm Condenser, 600 cfm Evaporator
Compressor TypeTwin BLDC Rotary
Drive TypeInverter
EER Rating12.1
FinishGalvanized
Frequency Rating60
HSPF Rating7.5
IndustryHVAC
MaterialSteel
Number of Fan Speeds3
Overall Height7-13/16
Overall Length17-5/16
Overall Width43-5/16
Phase1
Power Rating125 W, 84 W
Refrigerant TypeR-410A
SEER Rating20
Sound Level35
Temperature Rating64 to 90 deg F Cooling, <=86 deg F Heating
Voltage Rating208 to 230
Warranty10 Year Compressor, 10 Year Parts, 1 Year Limited Labor
Additional Information
AHRI Certified|cETLus Listed
Features & Benefits
- The outdoor unit shall supply power to indoor unit via 14/3 AWG power wire High voltage terminal block temperature sensor to disable unit in the event of power connection overheating Integral condensate pump with maximum 29 in lift from bottom of the unit with check valve and float switch that disables indoor should condensate overflow be detected Auto restart after power loss Soft start compressor minimizing current inrush All heat exchangers shall be mechanically bonded aluminum fin to copper tube The condensing unit heat exchanger salt spray test method ISO 9227 the heat exchanger showed no unusual rust or corrosion development to 3000 hr Base pan heater equipped as standard
Marketing Information
At only 7-7/8 in thick, the slim duct makes installation, maintenance and repair hassle-free. Its lightweight chassis also makes installation easier than ever. The slim duct unit includes a built-in condensate pump as standard.
