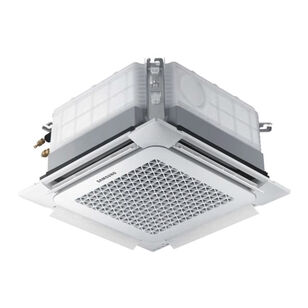

Samsung AC018BNNDCH/AA Mini-Split Heat Pump Indoor Unit, 208 to 230 V, 20.1 A, 1 ph -Phase, HIPS
Samsung AC018BNNDCH/AA Mini-Split Heat Pump Indoor Unit, 208 to 230 V, 20.1 A, 1 ph -Phase, HIPS
Samsung Mini-Split Heat Pump Indoor Unit, 208 to 230 V, 20.1 A, 120 W Condenser, 65 W Evaporator, 60 Hz, 1 ph, 17400 Btu/hr Cooling, 20000 Btu/hr Heating, 2154 cfm Condenser, 371 cfm Evaporator CFM Rating, 11 EER, 19.3 SEER, HSPF: 8.1, R-410A, Inverter Drive, 39 dBA, Cassette Mount, HIPS, 61 to 90 deg F Cooling, <=86 deg F Heating, 22-5/8 in Overall Length, 22-5/8 in Overall Width, 9-13/16 in Overall Height, Additional Information: Twin BLDC Rotary Compressor, Single Zone
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,831.68 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional InformationTwin BLDC Rotary Compressor, Single Zone
Amperage Rating20.1
BTU Rating17400 Btu/hr Cooling, 20000 Btu/hr Heating
CFM Rating2154 cfm Condenser, 371 cfm Evaporator
Drive TypeInverter
EER Rating11
Frequency Rating60
HSPF Rating8.1
MaterialHIPS
Mounting TypeCassette
Overall Height9-13/16
Overall Length22-5/8
Overall Width22-5/8
Phase1
Power Rating120 W Condenser, 65 W Evaporator
Refrigerant TypeR-410A
SEER Rating19.3
Sound Level39
Temperature Rating61 to 90 deg F Cooling, <=86 deg F Heating
Voltage Rating208 to 230
Warranty10 Year Compressor, 10 Year Parts, 1 Year Limited Labor
Additional Information
AHRI Certified|cETLus Listed|ENERGY STAR Certified
Features & Benefits
- The indoor unit shall feature WindFree™ mode, in cooling mode, as room temperature nears set temperature, the unit will close its louver and will disperse air into the space through thousands of micro holes on the front of the indoor unit preventing cold air drafts on occupants The outdoor unit shall supply power to indoor unit via 14/3 AWG power wire High voltage terminal block temperature sensor to disable unit in the event of power connection overheating Auto restart after power loss Soft start compressor minimizing current inrush Base pan heater equipped as standard All heat exchangers shall be mechanically bonded aluminum fin to copper tube The condensing unit heat exchanger salt spray test method ISO 9227 the heat exchanger showed no unusual rust or corrosion development to 3000 hr Integral condensate pump with maximum 29 in lift from bottom of the unit with check valve and float switch to disable unit in the event of condensate overflow Knock-out for outside air capability (with booster fan connection)
Marketing Information
Samsung WindFree™ mini four-way cassette uses thousands of micro holes to distribute air throughout the space without blowing directly on the occupants. You can activate WindFree™ cooling by pressing the WindFree™ button on the controller.
Samsung AC018BNNDCH/AA Mini-Split Heat Pump Indoor Unit, 208 to 230 V, 20.1 A, 1 ph -Phase, HIPS
BrandSamsung
MFG #AC018BNNDCH/AA
