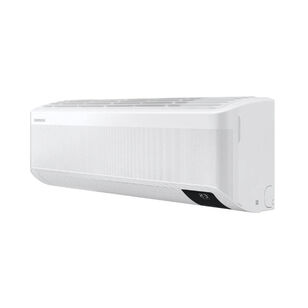

Samsung WindFree™ 3.0 AC024BNADCH/AA High Wall Evaporator Split System Unit, 208-230 V, 24.1 A, 1 ph -Phase, Steel
Samsung WindFree™ 3.0 AC024BNADCH/AA High Wall Evaporator Split System Unit, 208-230 V, 24.1 A, 1 ph -Phase, Steel
Samsung Evaporator Split System Unit, 208-230 V, 24.1 A, 27 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 24000 Btu/hr, 27000 Btu/hr, 466 cfm, 537 cfm, 629 cfm CFM Rating, 10.3 EER, 19.5 SEER, HSPF: 8.5, 30 A Fuse, Inverter Drive, 35 dBA, 39 dBA, 44 dBA, Steel, Galvanized, 64 to 90 deg F, <=86 deg F, 11-3/4 in Overall Length, 41-9/16 in Overall Width, 8-7/16 in Overall Height, Additional Information: Inverter Driven, Twin BLDC Rotary Compressor, R-410A Refrigerant, 1/4 in, 5/8 in Connection
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,975.32 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional InformationInverter Driven, Twin BLDC Rotary Compressor, R-410A Refrigerant, 1/4 ", 5/8 " Connection
Amperage Rating24.1
BTU Rating24000 Btu/hr, 27000 Btu/hr
CFM Rating466 cfm, 537 cfm, 629 cfm
Drive TypeInverter
EER Rating10.3
FinishGalvanized
Frequency Rating60
Fuse Rating30
HSPF Rating8.5
MaterialSteel
Number of Fan Speeds3
Overall Height8-7/16
Overall Length11-3/4
Overall Width41-9/16
Phase1
Power Rating27
SEER Rating19.5
Sound Level35 dBA, 39 dBA, 44 dBA
Temperature Rating64 to 90 deg F, <=86 deg F
Voltage Rating208-230
Warranty10 Year Compressor, 10 Year Parts, 1 Year Limited Labor
Additional Information
AHRI 210/240-2023|cETLus Listed|ENERGY STAR Certified|UL 94 Flammability V0/60335-2-40
Features & Benefits
- The indoor unit shall feature "WindFree™" mode In cooling mode, as room temperature nears set temperature, the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit preventing cold air drafts on occupants The outdoor unit shall supply power to indoor unit via 14 AWG x 3 power wire High voltage terminal block temperature sensor to disable unit in the event of power connection overheating Auto-restart after power loss Soft start compressor minimizing current inrush Base pan heater equipped as standard All heat exchangers shall be mechanically bonded aluminum fin to copper tube The condensing unit heat exchanger salt spray test method ISO 9227 the heat exchanger showed no unusual rust or corrosion development to 3000 hr The system shall provide 100% heating capacity at -4 deg F (-20 deg C) Indoor fan is a single crossflow-type Three-fan speed settings and auto setting Washable filter as standard The WindFree™ function will close the supply air outlet louver while in cooling mode to gently disperse cool air into the space without blowing directly onto occupants The WindFree™ feature is optional and can be enabled using central or local control options The WindFree™ indoor unit has an integral humidity sensor that will open the louver for standard cool mode when space conditions could potentially cause condensation formation on the chassis surface Control wiring shall be two 16 AWG Wireless controller included as standard Wired controllers must be purchased separately Dual-set temperature support when connected to MWR-WG00UN advanced wired controller or central control options
Marketing Information
CAC high wall units connect to CAC "universal" outdoor unit models AC0**BX****/AA. 18 kBtu/hr and 24 kBtu/hr high wall units will use the WindFree™ type chassis and 30 kBtu/hr and 36 kBtu/hr high wall units will use the max chassis.
Samsung WindFree™ 3.0 AC024BNADCH/AA High Wall Evaporator Split System Unit, 208-230 V, 24.1 A, 1 ph -Phase, Steel
BrandSamsung
MFG #AC024BNADCH/AA
Keller #1230153
