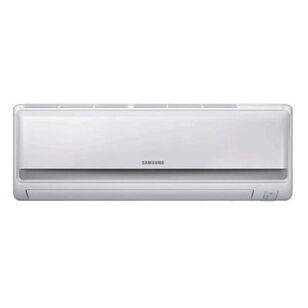

Samsung AC030BNTDCH/AA Indoor Split System, 208/230 V, 24 A, 30000 Btu/hr Cooling, 32000 Btu/hr Heating BTU, 1 ph
Samsung AC030BNTDCH/AA Indoor Split System, 208/230 V, 24 A, 30000 Btu/hr Cooling, 32000 Btu/hr Heating BTU, 1 ph
Samsung Indoor Split System, 208/230 V, 24 A, 58 W, 60 Hz, 1 ph, 3 Fan Speeds, 30000 Btu/hr Cooling, 32000 Btu/hr Heating, 671/724/777 cfm, 9.9 EER Rating, 19.5 SEER, 9.7 HSPF, Connection Type: Flared, 30 A Fuse Rating, Inverter Drive, 45/47/49 dBA Sound Level, Wall Mounting, Steel, Galvanized, 64 to 90 deg F Cooling, <=86 deg F Heating, 13-9/16 in Overall Length, 50-3/8 in Overall Width, 9-15/16 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,316.60 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Amperage Rating24
BTU Rating30000 Btu/hr Cooling, 32000 Btu/hr Heating
CFM Rating671/724/777
Color/FinishGalvanized
Connection TypeFlared
Drive TypeInverter
EER Rating9.9
FinishGalvanized
Frequency Rating60
Fuse Rating30
HSPF Rating9.7
IndustryHVAC
MaterialSteel
Mounting TypeWall
Number of Fan Speeds3
Overall Height9-15/16
Overall Length13-9/16
Overall Width50-3/8
Phase1
Power Rating58
SEER Rating19.5
Sound Level45/47/49
Temperature Rating64 to 90 deg F Cooling, <=86 deg F Heating
Voltage Rating208/230
Additional Information
AHRI 210/240|cETLus Intertek Listed|UL 60335-2-40
Features & Benefits
- The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire High-voltage terminal block temperature sensor to disable unit in the event of power connection overheating Auto-restart after power loss Soft-start compressor minimizing current inrush All heat exchangers shall be mechanically bonded aluminum fin to copper tube The condensing unit heat exchanger salt spray test method: ISO-9227- the heat exchanger showed no unusual rust or corrosion development to 3,000 hours.
Documents
Marketing Information
CAC High Wall units connect to CAC "universal" outdoor unit models AC0**BX****/AA. 18K and 24K btu/h High-Wall units will use the WindFree™* type chassis, and 30K and 36K btu/h High-Wall units will use the Max chassis.
