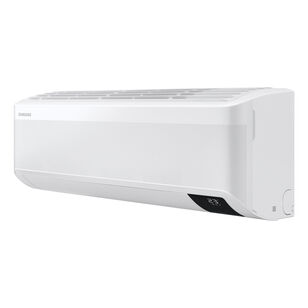

Samsung AC036BNTDCH/AA High-Wall Evaporator Indoor Unit, 208 to 230 V, 19.1 A Cooling, 24 A Heating, 1 ph Phase, HIPS
Samsung AC036BNTDCH/AA High-Wall Evaporator Indoor Unit, 208 to 230 V, 19.1 A Cooling, 24 A Heating, 1 ph Phase, HIPS
Samsung High-Wall Evaporator Indoor Unit, 208 to 230 V, 19.1 A Cooling, 24 A Heating, 4.8 kW, 60 Hz, 1 ph, 3 Fan Speeds, 36000 Btu/hr Cooling, 40000 Btu/hr Heating, 699 to 830 cfm, 9.5 EER Rating, 19.2 SEER, 8.5 HSPF, Connection Type: Flared, 35 A Fuse Rating, Inverter Drive, 51 dBA Sound Level, Wall Mounting, HIPS, 64 to 90 deg F Cooling, 86 deg F Heating, 13-9/16 in Overall Length, 50-3/8 in Overall Width, 9-15/16 in Overall Height, Additional Information: 5/8 in Gas Pipe Size, 3/8 in Liquid Pipe Size, R-410A Refrigerant Type
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,543.40 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional Information5/8 " Gas Pipe Size, 3/8 " Liquid Pipe Size, R-410A Refrigerant Type
Amperage Rating19.1 A Cooling, 24 A Heating
BTU Rating36000 Btu/hr Cooling, 40000 Btu/hr Heating
CFM Rating699 to 830
Connection TypeFlared
Correct Item GroupWall Mounted Indoor Units
Drive TypeInverter
EER Rating9.5
Frequency Rating60
Fuse Rating35
HSPF Rating8.5
IncludesWireless Controller
IndustryHVAC
MaterialHIPS
Mounting TypeWall
Number of Fan Speeds3
Overall Height9-15/16
Overall Length13-9/16
Overall Width50-3/8
Phase1
Power Rating4.8
SEER Rating19.2
Sound Level51
Temperature Rating64 to 90 deg F Cooling, 86 deg F Heating
Voltage Rating208 to 230
Warranty10 Year Compressor, 10 Year Parts, 1 Year Limited Labor
Additional Information
AHRI Certified|ENERGY STAR Certified|ETL Listed|UL 60335-2-40
Features & Benefits
- High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection Auto-restart after power loss Soft-start compressor minimizing current inrush All heat exchangers shall be mechanically bonded aluminum fin to copper tube The condensing unit heat exchanger salt spray test method: ISO-9227 - the heat exchanger showed no unusual rust or corrosion development to 3,000 hours Indoor fan is a single crossflow type Three fan speed settings and auto settings Washable filter as standard Indoor unit: UL94 V0 with a galvanized steel mounting plate Control wiring shall be 2 X 16 AWG Wireless controller included as standard Wired controllers must be purchased separately Dual set temperature support when connected to MWR-WG00UN Advanced Wired Controller or central control options No additional interface modules/adapters are required when connecting to Samsung central control options The unit shall be operated via a wireless or wired remote control with DDC type signal The compressor shall be hermetically sealed, inverter-controlled Twin BLDC rotary type Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit
Marketing Information
CAC High Wall units connect to CAC universal outdoor unit models AC0**BX****/AA. 18K and 24K btu/h High-Wall units will use the WindFree™* type chassis, and 30K and 36K btu/h High-Wall units will use the Max chassis.
