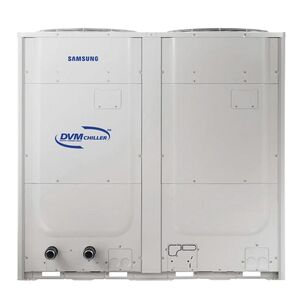

Samsung Ovation Series AG010KSVAFH/AA Heat Pump Chiller, 10 ton, 208 - 230 V, 3 ph Phase, Steel, R-410A Refrigerant
Samsung Ovation Series AG010KSVAFH/AA Heat Pump Chiller, 10 ton, 208 - 230 V, 3 ph Phase, Steel, R-410A Refrigerant
Samsung Heat Pump Chiller, 208 - 230 V Voltage Rating, 60 Hz Frequency Rating, 3 ph Phase, 80000 Btu/hr, 84000 Btu/hr, 120000 Btu/hr, 128000 Btu/hr BTU Rating, 12855 cfm Rating, 1.85, 2.2, 3.05, 3.84 EER Rating, Connection Type: Grooved, (2) Scroll Compressor Type, R-410A Refrigerant Type, Inverter Drive Type, 10 ton Tonnage, 60 dBA Sound Level, Steel, Galvanized, 5 to 118 deg F, -13 to 109 deg F Temperature Rating, 66-3/4 in H x 70-11/16 in W x 30-1/8 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$39,979.44Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
BTU Rating80000 Btu/hr, 84000 Btu/hr, 120000 Btu/hr, 128000 Btu/hr
CFM Rating12855
Compressor Type(2) Scroll
Connection TypeGrooved
Dimensions66-3/4 " H x 70-11/16 " W x 30-1/8 " D
Drive TypeInverter
EER Rating1.85, 2.2, 3.05, 3.84
FinishGalvanized
Frequency Rating60
MaterialSteel
Phase3
Refrigerant TypeR-410A
Sound Level60
Temperature Rating5 to 118 deg F, -13 to 109 deg F
Tonnage10
Voltage Rating208 - 230
Additional Information
AHRI Certified|cETLus Listed|UL 1995
Features & Benefits
- Construction - The unit shall be EGI (electronic galvanized steel) with a baked on powder coated finish. Some brackets shall be GI (hot-dipped galvanized steel) Air Side Heat Exchanger - The heat exchanger shall be mechanically bonded fin to copper tube The aluminum fins of the heat exchanger shall have a protective coating Salt spray test method: ASTM B117-18 - the heat exchanger showed no unusual rust or corrosion development to 2,280 hours Water Side Heat Exchanger - The heat exchanger shall be brazed plate type Controls - The unit shall be operated via NASA Protocol with controls provided by Samsung Can connect up to 16 X AG0**KSVA*H/AA DVM Chillers to a single DVM Chiller module controller (MCM-A00UN) to provide various system operation configuration, setup, monitoring, status, and error notification (MCM-A00UN is required for operation.) The outdoor unit shall have a removable EEPROM that stores unit serial number, startup information, system settings, system tag/name, and other information Controls shall integrate with a BMS without additional interface modules Control wiring shall be 16 AWG X 2 shielded wire (for communicating controls connections) Refrigerant System - The compressors shall be Samsung hermetically sealed, inverter driven, direct flash injected, DC scroll type with soft-start capability The refrigerant system capacity shall modulate based on demand Flash injected compressors provide advanced low ambient heating performance Refrigerant flow shall be controlled by EEV (electronic expansion valve) Asymmetrical scroll design with rotating compressor operation/priority Optional night quiet modes to reduce outdoor unit sound (default mode and levels 1-3) with automatic or manual activation
