Recessed-Mount

• Single temperature hose box
• These ACORn® stainless steel recessed hose boxes are cUPC by IAPMO certified for US and Canada, boxes are designed for attractive service in both interior and exterior walls not subject to freezing, recessed design prevents accidents which are common to surface-mounted or protruding hose valves
• Hose box is seamless construction, fabricated from 18 ga, type 304 stainless steel and is furnished with four stainless steel clips for anchoring to the wall construction
• Wall flange is 16 ga stainless steel polished to a satin finish, flange is furnished with four corner tapping's and screws for anchoring to box
• Door is provided with cam cylinder lock with two-keys, hinges are concealed type, door can be easily removed after opening by releasing hinge pins with a screwdriver
• Valve and stop body is cast bronze with exposed parts chrome-plated, valve and stop feature tamper-resistant lockshield bonnets and replaceable cartridges containing all wearing parts including the seat, the body casting is gasketed where it joins the box and is securely anchored with stainless steel tamper-resistant screws, supply inlet is 3/4 in NPT female, outlet is 3/4 in male hose thread
• Screwdriver stop in supply permits servicing the control valve without shutting down the water supply, vacuum breaker models prevent contamination of the potable water supply, vacuum breakers are atmospheric type and conform to the requirements of ASSE standard 1011

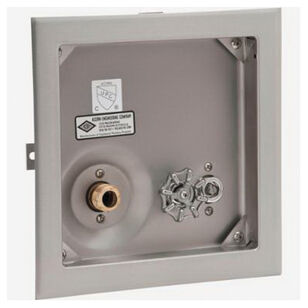

The 8140 single temperature recessed hose box with wall flange is stainless steel and intended for use in non-freezing interior and exterior walls. The valve and screwdriver stop are chrome-plated cast bronze and feature a tamper-resistant lock shield bonnet and replaceable cartridge. Available in lead-free stainless steel.
