ASME A112.18.1/CSA B125.1|ASME A112.1016/CSA B125.16|ASSE 1016

• High-flow thermostatic mixing valve Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet Service stops with integral filters Anti-scald protection Integrated adjustable high temperature limit stop to control maximum water temperature Adjustable comfort setting (preset at approximately 104 deg F) Conserve water by enabling built-in eco mode, which limits use to only one outlet at a time

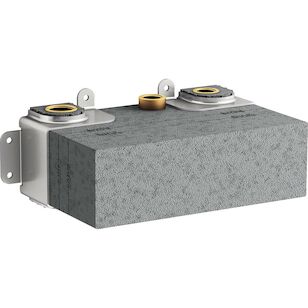

Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision engineered, best-in-class thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push button. With two independently controllable ports, this valve is ideally suited for applications where one or two shower outlets are required.
