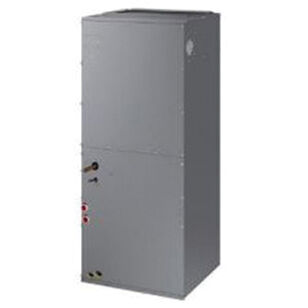

Samsung AC012BNZDCH/AA Air Handler, 12000 Btu/hr Cooling, 12000 Btu/hr Cooling, 13500 Btu/hr Heating BTU, 208 to 230 V
Samsung AC012BNZDCH/AA Air Handler, 12000 Btu/hr Cooling, 12000 Btu/hr Cooling, 13500 Btu/hr Heating BTU, 208 to 230 V
Samsung Air Handler, 12000 Btu/hr Cooling Capacity, 13500 Btu/hr Heating Capacity, 12000 Btu/hr Cooling, 13500 Btu/hr Heating BTU Rating, 208 to 230 V Voltage Rating, 1.5 A Amperage Rating, 60 Hz Frequency Rating, 1 ph Phase, 374 cfm, 286 cfm, 244 cfm Rating, Connection Type: Push-to-Connect, R-410A Refrigerant Type, 25 dB Low, 28 dB Medium, 31 dB High Sound Level, 3/4 in Connection, 1/4 in Liquid Line Size, 3/8 in Suction Line Size, 3 Number of Speeds, Constant Torque ECM Motor Type, 0.4 in-WC External Static, Steel, Galvanized, 43 in H x 17-1/2 in W x 21 in D Dimensions, Air Handlers & Fan Coils Correct Item Group
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,187.08 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Amperage Rating1.5
BTU Rating12000 Btu/hr Cooling, 13500 Btu/hr Heating
CFM Rating374 cfm, 286 cfm, 244 cfm
Connection Size3/4
Connection TypePush-to-Connect
Cooling Capacity12000
Correct Item GroupAir Handlers & Fan Coils
Dimensions43 " H x 17-1/2 " W x 21 " D
FinishGalvanized
Frequency Rating60
Heating Capacity13500
IndustryHVAC
Liquid Line Size1/4
MaterialSteel
Motor TypeConstant Torque ECM
Number of Speeds3
Phase1
Pressure Rating0.4 "-WC External Static
Refrigerant TypeR-410A
Sound Level25 dB Low, 28 dB Medium, 31 dB High
Suction Line Size3/8
Voltage Rating208 to 230
Additional Information
AHRI Certified|cETLus Listed|ENERGY STAR Certified
Features & Benefits
- The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire High-voltage terminal block temperature sensor to disable unit in the event of power connection overheating Auto-restart after power loss Soft-start compressor minimizing current inrush All heat exchangers shall be mechanically bonded aluminum fin to copper tube The condensing unit heat exchanger salt spray test method: ISO-9227-the heat exchanger showed no unusual rust or corrosion development to 3,000 hours.
Marketing Information
CAC Multi-position air handling unit (MPAH) ducted units connect to universal residential/light commercial outdoor unit models AC0**BXADCH/AA and Max Heat® models AC0**BXSCCH/AA along with the latest FJM multi-zone outdoor units AJ0**BX**CH/AA (12-24K Btu/h IDUs only). The variable capacity, heat pump air conditioning system shall be a Samsung Electronics System. The systems shall be (cool/heat) split system heat pump. The heat pump system shall consist of a single outdoor condensing unit, single indoor unit, and optional wired or wireless controller. The condensing shall be a horizontal discharge, 208/230V, 1Ph, 60Hz unit. The evaporator shall be concealed duct type. Standard and Max Heat® outdoor unit models are available (2.5 and 3 ton capacities). Max Heat® outdoor units provide advanced heating performance at -13 deg F for the coldest of climates.
