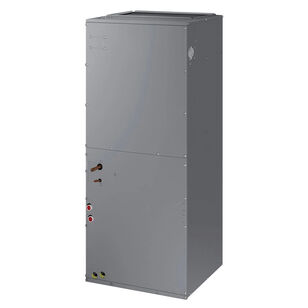

Samsung Eclipse Series AC018BNZDCH/AA Multi-Position Air Handler Unit, 18000 Btu/hr Cooling, 600 cfm, 208 to 230 V
Samsung Eclipse Series AC018BNZDCH/AA Multi-Position Air Handler Unit, 18000 Btu/hr Cooling, 600 cfm, 208 to 230 V
Samsung Multi-Position Air Handler Unit, FJM Series, CNH18ZDB Model, 18000 Btu/hr Cooling Capacity, 20000 Btu/hr Heating Capacity, 208 to 230 V Voltage Rating, 1.5 A Amperage Rating, 60 Hz Frequency Rating, 1 ph Phase, 600 cfm Rating, R-410A Refrigerant Type, 33 dBA Sound Level, 3/4 in Connection, 1/4 in Liquid Line Size, 1/2 in Suction Line Size, 3 Number of Speeds, ECM Constant Torque Motor Type, 0.8 in-WC, Steel, Galvanized, 43 in H x 17-1/2 in W x 21-3/4 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,277.80Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Amperage Rating1.5
CFM Rating600
Connection Size3/4
Cooling Capacity18000
Dimensions43 " H x 17-1/2 " W x 21-3/4 " D
FinishGalvanized
Frequency Rating60
Heating Capacity20000
IndustryHVAC
Liquid Line Size1/4
MaterialSteel
ModelCNH18ZDB
Motor TypeECM Constant Torque
Number of Speeds3
Phase1
Pressure Rating0.8
Refrigerant TypeR-410A
SeriesFJM Series
Sound Level33
Suction Line Size1/2
Voltage Rating208 to 230
Warranty10 Year Compressor, 10 Year Parts, 1 Year Limited Labor
Additional Information
cETLus Listed
Features & Benefits
- High voltage terminal block temperature sensor to disable unit in the event overheating of power connection System energy consumption can be viewed using Samsung SmartThings mobile app Indoor fan is a double Inlet, forward curve, centrifugal type Three-fan speed settings and auto setting Field configurable for downflow operation with optional conversion kit Control wiring shall be two 16 AWG The unit shall be operated via a wireless or wired remote control with DDC-type signal Dual set temperature support when connected to MWR-WG00UN advanced wired controller and supported central control Wired or wireless controllers must be purchased separately Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit
Marketing Information
Highly adaptable, the multi-position air handler (MPAH) can be installed in numerous positions for added installation flexibility. With the ability to handle the external static pressure up to 0.8 in-WC, the MPAH provides expansive coverage with outstanding cooling and heating performance.
Samsung Eclipse Series AC018BNZDCH/AA Multi-Position Air Handler Unit, 18000 Btu/hr Cooling, 600 cfm, 208 to 230 V
BrandSamsung
MFG #AC018BNZDCH/AA
Keller #1236794
My Part ##
Last Ordered#
$3,277.80Â /Â ea
