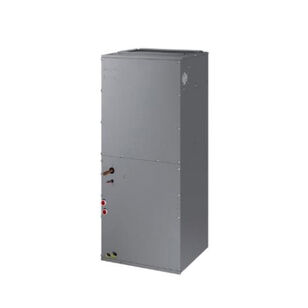

Samsung AC024BNZDCH/AA Air Handling Unit, 24000 Btu/hr Cooling, 759 cfm, 208 to 230 V, 1.5 A, 153 W, 60 Hz, 1 ph Phase
MFG #AC024BNZDCH/AA
Item #1236795
Mfr. Part #AC024BNZDCH/AA
UPC #88727657711
Samsung Air Handling Unit, FJM Series, 24000 Btu/hr Cooling Capacity, 27000 Btu/hr Heating Capacity, 208 to 230 V Voltage Rating, 1.5 A Amperage Rating, 153 W Wattage, 60 Hz Frequency Rating, 1 ph Phase, 759 cfm Rating, Multi-Position Configuration, R-410A Refrigerant Type, 34 dBA Sound Level, 3/4 in Connection, 1/4 in Liquid Line Size, 5/8 in Suction Line Size, 3 Number of Speeds, ECM Constant Torque Motor Type, 0.58 in-WC, Steel, Galvanized, 70 to 80 deg F Temperature Rating, 43 in H x 17-1/2 in W x 21 in D Dimensions, Electronic Expansion Valve Control Unit Additional Information
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$3,987.36Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Marketing Information
Attributes
BrandSamsung
Additional InformationElectronic Expansion Valve Control Unit
Amperage Rating1.5
CFM Rating759
ConfigurationMulti-Position
Connection Size3/4
Cooling Capacity24000
Dimensions43 " H x 17-1/2 " W x 21 " D
FinishGalvanized
Frequency Rating60
Heating Capacity27000
IndustryHVAC
Liquid Line Size1/4
MaterialSteel
Motor TypeECM Constant Torque
Number of Speeds3
Phase1
Pressure Rating0.58
Refrigerant TypeR-410A
SeriesFJM Series
Sound Level34
Suction Line Size5/8
Temperature Rating70 to 80
Voltage Rating208 to 230
Wattage153
Additional Information
cETLus Listed|UL 1995
Features & Benefits
High voltage terminal block temperature sensor to disable unit in the event overheating of power connection
System energy consumption can be viewed using Samsung SmartThings mobile app
Highly adaptable, the multi-position air handler (MPAH) can be installed in numerous positions for added installation flexibility. With the ability to handle the external static pressure up to 0.8 in-WC, the MPAH provides expansive coverage with outstanding cooling and heating performance.
