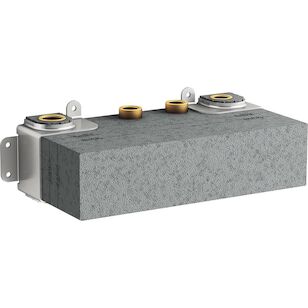

Kohler® Anthem™ 26341-NA Recessed Mechanical Thermostatic Valve, 3/4 x 1/2 in Nominal, FNPT, 3 -Port/Way, 8 gpm, 45 psi
Kohler® Anthem™ 26341-NA Recessed Mechanical Thermostatic Valve, 3/4 x 1/2 in Nominal, FNPT, 3 -Port/Way, 8 gpm, 45 psi
Kohler® Recessed Mechanical Thermostatic Valve, Anthem™ Collection, 3/4 x 1/2 in Nominal, FNPT Connection, 45 psi, 8 gpm Flow Rate, Number of Ports/Ways: 3, Brass Body, 13-15/16 in L x 4-7/8 in W x 6-1/8 in H, Domestic/Import: Domestic, Additional Information: Anthem™ Collection
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$776.80 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandKohler®
Additional InformationAnthem Collection
Body MaterialBrass
CollectionAnthem
Connection TypeFNPT
Dimensions13-15/16 " L x 4-7/8 " W x 6-1/8 " H
Domestic/ImportDomestic
Flow Rate8
IndustryPlumbing
Nominal Size3/4 x 1/2
Number of Ports/Ways3
Pressure Rating45
Shipping Dimensions (L x W x H)15.32" x 8.19" x 7.44"
Additional Information
ASME A112.18.1/CSA B125.1|ASME A112.1016/CSA B125.16|ASSE 1016
Features & Benefits
- Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet Service stops with integral filters Anti-scald protection Integrated adjustable high temperature limit stop to control maximum water temperature Adjustable comfort setting (preset at approximately 104 deg F) Cast dezincification-resistant brass body provides long-term reliability and resistance to aggressive water conditions Mounts within standard 2 x 4 in (38 x 102 mm) walls
Marketing Information
Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision engineered, best-in-class thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push buttons. With three independently controllable ports, this valve is ideally suited for applications where up to three outlets are required.
Kohler® Anthem™ 26341-NA Recessed Mechanical Thermostatic Valve, 3/4 x 1/2 in Nominal, FNPT, 3 -Port/Way, 8 gpm, 45 psi
BrandKohler®
MFG #K-26341-NA
Keller #1237445
My Part ##
Last Ordered#
$776.80 / ea
