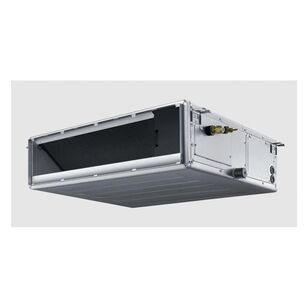

Samsung DVM S Series AM036ANHDCH/AA HSP Ducted Unit, 208 - 230 V, 1.2 A, 36000 Btu/hr Cooling, 40000 Btu/hr Heating BTU
Samsung DVM S Series AM036ANHDCH/AA HSP Ducted Unit, 208 - 230 V, 1.2 A, 36000 Btu/hr Cooling, 40000 Btu/hr Heating BTU
Samsung HSP Ducted Unit, Series: DVM S Series, 208 - 230 V, 1.2 A, 130 W, 60 Hz, 1 ph Phase, 3 Fan Speeds, 36000 Btu/hr Cooling, 40000 Btu/hr Heating, 1095 cfm, Flared Connection, R-410A Refrigerant, Tonnage: 3 ton, 37 dBA, 34 dBA, 30 dBA Sound Level, Steel, Finish: Galvanized, 27-9/16 in Overall Length, 51-3/16 in Overall Width, 11-13/16 in Overall Height, For Use With: Samsung DVM S Water and DVM Eco Systems, Additional Information: 2021 Version, Indoor Unit, Deluxe Feature, Heat Pump and Heat Recovery Mode
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,894.56Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information2021 Version, Indoor Unit, Deluxe Feature, Heat Pump and Heat Recovery Mode
Amperage Rating1.2
BTU Rating36000 Btu/hr Cooling, 40000 Btu/hr Heating
CFM Rating1095
Connection TypeFlared
FinishGalvanized
Frequency Rating60
MaterialSteel
Number of Fan Speeds3
Overall Height11-13/16
Overall Length27-9/16
Overall Width51-3/16
Phase1
Power Rating130
Refrigerant TypeR-410A
SeriesDVM S Series
Sound Level37 dBA, 34 dBA, 30 dBA
Suitable For Use WithSamsung DVM S Water and DVM Eco Systems
Tonnage3
Voltage Rating208 - 230
Additional Information
ETL Listed|UL 1995
Features & Benefits
- Horizontal discharge airflow The indoor unit shall have a removable EEPROM that stores system programming information, unit name, and other data All indoor unit addressing and option settings shall be done digitally; the indoor unit does not contain rotary dials or setting switches The indoor unit shall have static pressure scanning for simple setup and optimized comfort settings for the occupant The indoor unit shall have smart-tuning function that can provide optimized comfort by allowing the occupant to offset the fan CFM curve with a wired remote controller (MWR-SH10N, MWR-SH11UN, MWR-WE13*N, MWR-WG00*N) to increase or decrease airflow The indoor unit shall allow service access from four sides (top, bottom, left, right) The indoor unit shall have an internal condensate pump as standard with float switch (maximum 29" lift from bottom of unit) High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection Discharge air temperature sensor with target discharge temperature control capability The heat exchanger shall be mechanically bonded fin to copper tube Indoor fan is a centrifugal type with a single fan motor Fan output can be configured during commissioning for various external static pressure ranges
Samsung DVM S Series AM036ANHDCH/AA HSP Ducted Unit, 208 - 230 V, 1.2 A, 36000 Btu/hr Cooling, 40000 Btu/hr Heating BTU
BrandSamsung
MFG #AM036ANHDCH/AA
Keller #1238030
My Part ##
Last Ordered#
$4,894.56Â /Â ea
