ASME A112.18.1/CSA B125.1|ASME A112.1016/CSA B125.16|ASSE 1016

• Digitally controlled thermostatic mixing valve Built-in temperature and flow control, anti-scald protection Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired Highly anticipated updates to the Kohler® Konnect® app will unlock additional Anthem™ system features, Kohler® developed experiences and system updates Up to 12 gpm (45.4 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet Two independently controllable 1/2 in outlets with brass tube connections 1/2 in inlets with brass tube connections Conserve water by enabling built-in eco mode, which limits use to only one outlet at a time

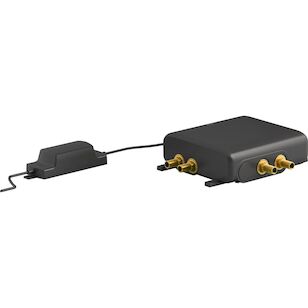

Digital thermostatic technology provides accurate, precise and consistent temperature and flow control in your showering system. This precision engineered, best-in-class digital thermostatic valve is designed for use with the Anthem™ digital control. Its easy plug and play design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required. Optional built-in eco mode lets you use just one outlet at a time to conserve water.
