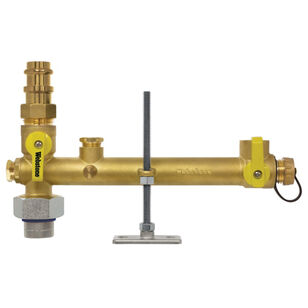

Webstone Pro-Pal Series H-81653W Dielectric Water Heater Supply Valve With Expansion Tank Service, Brass, 180 deg F
MFG #H-81653W
Item #1239363
Mfr. Part #H-81653W
UPC #018394023314
more info
Webstone Dielectric Water Heater Supply Valve With Expansion Tank Service, Pro-Pal Series, 3/4 in Connection, FIP Union x Press x FIP x Hose Connection, 150 psi, Full Port, PTFE Seat, EPDM Seal, EPDM Softgoods, 9 in Shank Length, Brass, Lead-Free, 180 deg F, 7.72 in H x 12.2 in W, Additional Information: Full Port DZR Brass Ball with Dielectric Union End, 3/4 Expansion Tank Port and Hi-Flow Hose Drain, (3) Plugged FIP Ports (1/2 in, 1/2 in and 1/8 in)
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$212.40Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandWebstone
Additional InformationFull Port DZR Brass Ball with Dielectric Union End, 3/4 Expansion Tank Port and Hi-Flow Hose Drain, (3) Plugged FIP Ports (1/2 ", 1/2 " and 1/8 ")
Connection Size3/4
Connection TypeFIP Union x Press x FIP x Hose
Dimensions7.72 " H x 12.2 " W
IndustryPlumbing
Lead-FreeYes
MaterialBrass
Port TypeFull
Pressure Rating150
Seal MaterialEPDM
Seat MaterialPTFE
SeriesPro-Pal Series
Shank Length9
Softgoods MaterialEPDM
Temperature Rating180
Additional Information
CAN/ANSI Specified|NSF 61/372
Features & Benefits
Simplifies storage tank water heater installations
FIP dielectric union for connection to the water heater
Integrated valves isolate the water supply and expansion tank for service
1/2 in FIP cold water tapping for water heater tempering valve
1/2 in FIP port for installation of vacuum relief valve and 1/8 in plugged gauge port
Compatible with 3/4 in MIP expansion tanks up to 5 gal
Saves 135 min, replaces 16 components, eliminates 15 leak paths
This valve is actuated by a blowout-proof stem
Double O-ring stem seals
