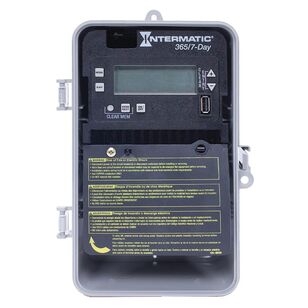

7-Day/365 Day 1-Circuit Electronic Control, 120-277 VAC, SPST, Indoor/Outdoor Plastic Enclosure
7-Day/365 Day 1-Circuit Electronic Control, 120-277 VAC, SPST, Indoor/Outdoor Plastic Enclosure
The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Depth4
Height10
IndustryPlumbing
ItemApplicationCompatibilities_enLED
ItemBackupProtectionTime_en100 hr
ItemBackupRestorationTime_en30 min
ItemBackupType_enSupercapacitor
ItemDaylightSavingAdjustment_enAutomatic
ItemElectronicBallastLED_en10 A
ItemElectronicBallastLoadRatingsNORanges_en10 A, 120/277 VAC
ItemElectronicSeries_enET2000 Series
ItemEnclosureType_enIndoor/outdoor type 3R plastic with see-through door
ItemInductiveLoadRatingsNORanges_en30 A, 120-240 VAC
ItemInputVoltageRanges_en120-277 VAC, 60 Hz
ItemKnockoutDimensionsBack_en(1) combination 0.5 " - 0.75 "
ItemKnockoutDimensionsBottom_en(2) combination 0.5 " - 0.75 "
ItemMagneticBallastLoadRatingsNORanges_en20 A, 120-277 VAC
ItemMarket_enCommercial, Industrial, Utility
ItemMaximumOnOffOperations_en96
ItemMaximumOnOffTime_enIndefinite
ItemMinimumOnOffTime_en1 min
ItemMotorLoadRatingsNORanges_en1 HP, 120 VAC, 2 HP, 240 VAC
ItemNumberOfCircuits_en1
ItemOnOffOperations_en96
ItemOperatingTemperatureMaxC40
ItemOperatingTemperatureMaxF104
ItemOperatingTemperatureMinC-40
ItemOperatingTemperatureMinF-40
ItemOperationFeatures_enHoliday
ItemOperationMode_en7 day
ItemPowerConsumptionMaxW_en3 W
ItemProductDepthIn4
ItemProductDepthMm101.6
ItemProductHeightIn10
ItemProductHeightMm254
ItemProductWidthIn6.5
ItemProductWidthMm165.1
ItemResistiveLoadRatingsNORanges_en20 A, 28 VDC, 30 A, 120-240 VAC
ItemSetpointProgramCount96
ItemSwitchType_enSPST
ItemTungstenLoadRatingsNORanges_en5 A, 120-277 VAC
ItemVoltageSelectionType_enAuto Voltage
ItemWireSizeMax_enNo. 8 AWG
ItemWireSizeMin_enNo. 14 AWG
ItemWiringOption_enTerminals
Min1
ModelItt-et2705cp
Other CertificationsLED;Title 20
UlcULus
Width6.5
Shipping Dimensions (L x W x H)6.5" x 3.94" x 10"
Additional Information
CULUS
Features & Benefits
- 100-hour supercapacitor eliminates the need for batteries Up to 96 set points or events Up to 50 holiday blocks with schedule capabilities Automatic input voltage selection from 120 to 277 VAC, 60 Hz Additional mode of operation turns the ON/OFF buttons into 2-hour overrides Configurable outputs allow the control of various voltages and applications Relays incorporate zero-crossing technology to extend the life of the control Non-volatile EEPROM memory protects programming indefinitely LED compatible USB port makes transferring and saving of schedules easy
Marketing Information
The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.
7-Day/365 Day 1-Circuit Electronic Control, 120-277 VAC, SPST, Indoor/Outdoor Plastic Enclosure
BrandIntermatic®
MFG #ET2705CP
Keller #1240027
