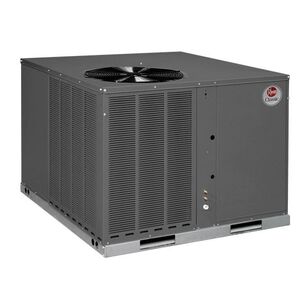

Rheem® RACA15, Classic 060ACT RACA15060ACT000AA Air Conditioner Package Unit, 2 to 5 ton Nominal, 208 to 230 VAC, 30 A
Rheem® RACA15, Classic 060ACT RACA15060ACT000AA Air Conditioner Package Unit, 2 to 5 ton Nominal, 208 to 230 VAC, 30 A
Rheem® Air Conditioner Package Unit, Series: RACA15, Classic, Model: 060ACT, 2 to 5 ton Nominal Capacity, 60000 Btu/hr Cooling BTU Rating, 208 to 230 VAC, 30 A, 2.14 kW 1-Stage, 5.02 kW 2-Stage, 1/3 hp Condenser, 1 hp Blower Motor HP Rating, 1075 rpm Rotational Speed, 60 Hz, 3 ph, (1) Scroll Compressor, 1250 cfm at 1-Stage, 1850 cfm at 2-Stage CFM Rating, 20.9 at 1-Stage, 11.4 at 2-Stage EER, 15 SEER, R-410A, HFC, 78 dBA, Constant Torque (X13) Drive, Outdoor Coil - 15.3 sq-ft Face Area, 23 Fins/in, Indoor Coil - 4 sq-ft Face Area, 20 Fins/in Coil Rating, 47-1/2 in W x 41 in H x 50-13/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$17,275.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating30
CFM Rating1250 cfm at 1-Stage, 1850 cfm at 2-Stage
Coil RatingOutdoor Coil - 15.3 sq-' Face Area, 23 Fins/", Indoor Coil - 4 sq-' Face Area, 20 Fins/"
Compressor Type(1) Scroll
Cooling BTU Rating60000
Dimensions47-1/2 " W x 41 " H x 50-13/16 " D
Drive TypeConstant Torque (X13)
EER Rating20.9 at 1-Stage, 11.4 at 2-Stage
Frequency Rating60
HP Rating1/3 hp Condenser, 1 hp Blower Motor
IndustryHVAC
Model060ACT
Nominal Capacity2 to 5
Phase3
Refrigerant TypeR-410A, HFC
Rotational Speed1075
SEER Rating15
SeriesRACA15, Classic
Sound Level78
Voltage Rating208 to 230
Wattage2.14 kW 1-Stage, 5.02 kW 2-Stage
Additional Information
AHRI Certified, ISO 9001:2008 Certified, C/US UL Listed, Energy Star Certified
Features & Benefits
- 1st variation major Series 1st variation minor Series Scroll compressors for maximum efficiency and quiet operation Louvered condenser compartment to protect the coil against yard hazards and/or weather extremes One-piece top with a drip lip to help keep water off of the unit sides Drawn supply and return air openings feature a 1 in tall flange to prevent water migration into the ductwork Access panels have "weep holes" and channels to further help manage water run-off Easily accessible blower section complete with slide-out blower Externally mounted refrigerant connections are conveniently located for easy service diagnostics Micro channel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils All aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential, its easier to clean and has a more robust surface One-point wiring simplifies installation All units feature an internal trap on the condensate line eliminating the need for installing an onsite external trap Easily accessible control box Thermal expansion valve standard on all models for superior superheat control, reliability and energy efficiency at all operating conditions Solid core liquid line filter drier standard on all models Rugged base rail included for improved installation and handling Molded compressor plugs Complete factory charged, wired and run tested A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality
Rheem® RACA15, Classic 060ACT RACA15060ACT000AA Air Conditioner Package Unit, 2 to 5 ton Nominal, 208 to 230 VAC, 30 A
BrandRheem®
MFG #RACA15060ACT000AA
Keller #1240475
My Part ##
Last Ordered#
$17,275.50 / ea
