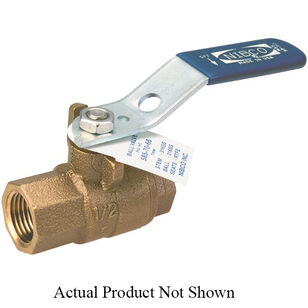

NIBCO® T-585-70-66 Series NL951HB Inline Ball Valve, 1-1/4 in, FNPT, Bronze, 600 psi
NIBCO® T-585-70-66 Series NL951HB Inline Ball Valve, 1-1/4 in, FNPT, Bronze, 600 psi
NIBCO® Inline Ball Valve, T-585-70-66 Series, 1-1/4 in Nominal, FNPT Connection, Full Port, 600 psi, Air, Gas, Water Media, Manual Actuator, 1-1/4 in Orifice, 4.19 in Inlet to Outlet Length, 3 in Top to Inlet Center, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B16 C36000, ASTM B584 C84400, Bronze Body, RPTFE Seat, 316 Stainless Steel Stem, RPTFE Seal, Stainless Steel Trim, PTFE Packing, Steel Handle, Stainless Steel Ball, RPTFE Softgoods, Contains Lead, 400 deg F, 2.46 in Dia x 6.76 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$495.60 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Actuator TypeManual
ApplicationFor commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas, natural gas and aggressive water applications
Ball MaterialStainless Steel
Body MaterialBronze
Connection TypeFNPT
Dimensions2.46 " Dia x 6.76 " L
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length4.19
Material StandardASTM B16 C36000, ASTM B584 C84400
MediaAir, Gas, Water
Nominal Size1-1/4
Operator TypeQuarter-Turn Lever Handle
Orifice Size1-1/4
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialRPTFE
Seat MaterialRPTFE
SeriesT-585-70-66 Series
Softgoods MaterialRPTFE
Stem Material316 Stainless Steel
Temperature Rating400
Top to Inlet Center3
Trim MaterialStainless Steel
Warranty5 Year Limited
Additional Information
MSS SP-110 Specified
Features & Benefits
- Blowout-proof stem design Dezincification-resistant
Documents
Marketing Information
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The full port valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas, natural gas and aggressive water applications. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® 5 year 125% limited warranty.
NIBCO® T-585-70-66 Series NL951HB Inline Ball Valve, 1-1/4 in, FNPT, Bronze, 600 psi
