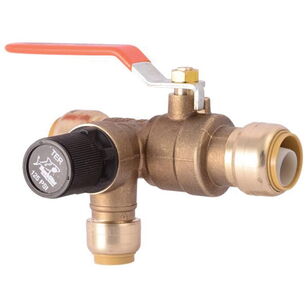

SharkBite™ 25704LF Thermal Expansion Relief Valve, 3/4 x 3/4 x 1/2 in Nominal, Push-Fit, 200 psi, 200 deg F, Brass Body
SharkBite™ 25704LF Thermal Expansion Relief Valve, 3/4 x 3/4 x 1/2 in Nominal, Push-Fit, 200 psi, 200 deg F, Brass Body
SharkBite™ Thermal Expansion Relief Valve, 3/4 x 3/4 x 1/2 in Nominal, Push-Fit Connection, Full Port, 200 psi, Brass Body, Silicone Seat, PTFE Seal, NBR Softgoods, 200 deg F, 4.69 in L x 3.93 in H, Additional Information: For Use With PEX, Copper, CPVC, PE-RT and SDR 9 HDPE Pipes
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$102.82 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSharkBite™
Additional InformationFor Use With PEX, Copper, CPVC, PE-RT and SDR 9 HDPE Pipes
ApplicationFor working in tight spaces
Body MaterialBrass
Connection TypePush-Fit
Dimensions4.69 " L x 3.93 " H
IndustryPlumbing
Nominal Size3/4 x 3/4 x 1/2
Port TypeFull
Pressure Rating200
Seal MaterialPTFE
Seat MaterialSilicone
Softgoods MaterialNBR
Temperature Rating200
Warranty5 Year
Additional Information
ANSI Z1157|CSA B125.3|IAPMO Approved|NSF/ANSI/CAN 61, 372
Features & Benefits
- Compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipes Can be installed in wet lines Can be rotated for easier installation No special tool, crimping, glue or soldering is needed Remove using a disconnect clip or disconnect tongs
Marketing Information
SharkBite™ thermal expansion relief valve eliminates the need for an expansion tank, shut-off valve and fitting. Features a pressure only safety relief valve designed to protect hot water supply systems where high-pressure conditions are likely to occur as a result of thermal expansion.
SharkBite™ 25704LF Thermal Expansion Relief Valve, 3/4 x 3/4 x 1/2 in Nominal, Push-Fit, 200 psi, 200 deg F, Brass Body
BrandSharkBite™
MFG #25704LF
Keller #1242063
My Part ##
Last Ordered#
$102.82 / ea
