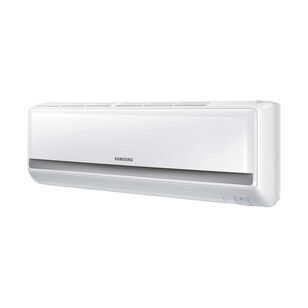

Samsung AR36BSHUMGMNCV Evaporator Indoor Split System With Galvanized Steel Mounting Plate, 208 to 230 V, 20 A
Samsung AR36BSHUMGMNCV Evaporator Indoor Split System With Galvanized Steel Mounting Plate, 208 to 230 V, 20 A
Samsung Evaporator Indoor Split System, 208 to 230 V, 20 A, 58 W, 125 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 36000 Btu/hr, 40000 Btu/hr, 699 cfm, 752 cfm, 830 cfm, 3532 cfm Rating, 9.5 EER, 19.2 SEER, HSPF: 8.5, 3/8 in Flared High Side, 5/8 in Flared Low Side, 1 in ID x 1-1/4 in OD Condensate Connection Type, 35 A Fuse, Inverter Drive, 38 dB, 46 dB, 48 dB, 51 dB, Wall Mount, 61 to 90 deg F Cooling, <=86 deg F Heating, 50-3/8 in Overall Width, 9-15/16 in Overall Height, Additional Information: 13-9/16 in D Dimensions, R-410A Refrigerant
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,263.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information13-9/16 " D Dimensions, R-410A Refrigerant
Amperage Rating20
BTU Rating36000 Btu/hr, 40000 Btu/hr
CFM Rating699 cfm, 752 cfm, 830 cfm, 3532 cfm
Connection Type3/8 " Flared High Side, 5/8 " Flared Low Side, 1 " ID x 1-1/4 " OD Condensate
Drive TypeInverter
EER Rating9.5
Frequency Rating60
Fuse Rating35
HSPF Rating8.5
IncludesWireless Controller
IndustryHVAC
Mounting TypeWall
Number of Fan Speeds3
Overall Height9-15/16
Overall Width50-3/8
Phase1
Power Rating58 W, 125 W
SEER Rating19.2
Sound Level38 dB, 46 dB, 48 dB, 51 dB
Temperature Rating61 to 90 deg F Cooling, <=86 deg F Heating
Voltage Rating208 to 230
Warranty10 Year Compressor, 10 Year Parts, 1 Year Limited Labor
Additional Information
AHRI 210/240|cETLus Listed|ENERGY STAR Certified|UL 60335-2-40
Features & Benefits
- High voltage terminal block temperature sensor to disable unit in the event of power connection overheating Auto restart after power loss Soft start compressor minimizing current inrush All heat exchangers shall be mechanically bonded aluminum fin to copper tube The condensing unit heat exchanger salt spray test method ASTMB117-18 the heat exchanger showed no unusual rust or corrosion development to 2280 hr Indoor fan is a single crossflow type Three-fan speed settings and auto setting Washable filter as standard Control wiring shall be 2 a 16 AWG Wireless controller included as standard Wired controllers must be purchased separately Dual set temperature support when connected to MWR-WG00UN advanced wired controller and supported central control No additional interface modules/adapters are required when connecting to Samsung central control options The unit shall be operated via a wireless or wired remote control with DDC-type signal The compressor shall be hermetically sealed, inverter controlled twin BLDC rotary-type Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit
Documents
Samsung AR36BSHUMGMNCV Evaporator Indoor Split System With Galvanized Steel Mounting Plate, 208 to 230 V, 20 A
BrandSamsung
MFG #AR36BSHUMGMNCV
Keller #1244858
