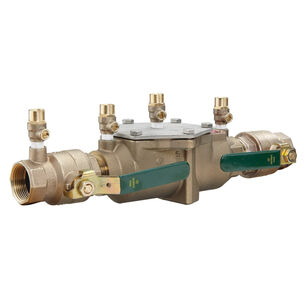

AMES® FIRE & WATERWORKS LF2000B Series 0425999 Double Check Valve Backflow Preventer Assembly, 1 in, FNPT, Lead-Free
AMES® FIRE & WATERWORKS LF2000B Series 0425999 Double Check Valve Backflow Preventer Assembly, 1 in, FNPT, Lead-Free
AMES® FIRE & WATERWORKS Double Check Valve Backflow Preventer Assembly, LF2000B Series, 1 in Nominal, FNPT Connection, 175 psi Pressure, Media: Water, 13-1/4 in Inlet to Outlet Length, 4 in Top to Inlet Center, Top Mounting, Copper Silicone Alloy Body, Lead-Free/Contains Lead: Lead-Free, 33 to 140 deg F, Dimensions: 5-1/8 in W, Additional Information: Rubber Disc, Rubber Seat, Straight Pattern
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$901.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Additional InformationRubber Disc, Rubber Seat, Straight Pattern
Body MaterialCopper Silicone Alloy
Connection TypeFNPT
Dimensions5-1/8 " W
IncludesTop-Mounted Test Cock, (2) In-Line Independent Positive Seating Check Module, Captured Spring and Replaceable Check Disc and Seat
IndustryPlumbing
Inlet to Outlet Length13-1/4
Lead-FreeYes
MediaWater
Mounting TypeTop
Nominal Size1
Pressure Rating175
SeriesLF2000B Series
Temperature Rating33 to 140
Top to Inlet Center4
Warranty1 Year Limited
Additional Information
ASSE 1013|AWWA C511|CSA B64.4|IAPMO 1563|UPC Certified
Features & Benefits
- Lead free construction One top entry access cover for easy maintenance Top mounted ball valve type test cocks No special tools are required
Marketing Information
This 1 inch lead free double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly, without ball valve, consists of a lead free cast silicon copper alloy body, NPT end connections, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats.
AMES® FIRE & WATERWORKS LF2000B Series 0425999 Double Check Valve Backflow Preventer Assembly, 1 in, FNPT, Lead-Free
BrandWATTS®
MFG #0425999
Keller #1245729
