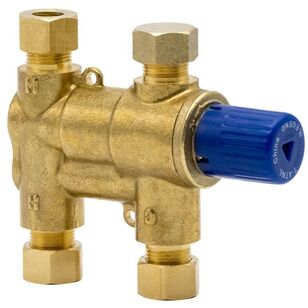

Legend Valve T-47NL Series 115-282NL Undersink Thermostatic Mixing Valve, 3/8 in Nominal, Compression, 3-Port/Way
Legend Valve T-47NL Series 115-282NL Undersink Thermostatic Mixing Valve, 3/8 in Nominal, Compression, 3-Port/Way
Legend Valve Undersink Thermostatic Mixing Valve, T-47NL Series, 3/8 in Nominal, Compression Connection, 3-Port, 150 psi, 0.25 to 3.2 gpm Flow Rate, Water Media, Handwheel Actuator, 1.91 in Inlet to Outlet Length, Number of Ports/Ways: 3, Brass Body, Brass Stem, EPDM Softgoods, 120 to 200 deg F, 3.18 in H x 3.82 in W, Additional Information: Lead-Free
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$187.04Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLegend Valve
Actuator TypeHandwheel
Additional InformationLead-Free
Body MaterialBrass
Configuration3-Port
Connection TypeCompression
Dimensions3.18 " H x 3.82 " W
Flow Rate0.25 to 3.2
IndustryPlumbing
Inlet to Outlet Length1.91
MediaWater
Nominal Size3/8
Number of Ports/Ways3
Pressure Rating150
SeriesT-47NL Series
Softgoods MaterialEPDM
Stem MaterialBrass
Temperature Rating120 to 200
Additional Information
ASME A112.1070|ASSE 1070|CSA B125.70|NSF/ANSI 61 Section 9/372
Features & Benefits
- 3/8 in compression fittings for easy install between stop valves and faucet Lead-free brass body construction Cap with integral temperature adjustment tool
Documents
Marketing Information
The Legend T-47NL 3/8 in (10 mm) compression-fitting, thermostatic mixing valve sustains and limits hot water to an adjustable temperature between 80 to 120 deg F (27 to 49 deg C) and with a flow rate between 0.25 and 3.2 gpm. The mixing valve is listed to ASSE 1070 standard (single fixture applications). The flow characteristics of the T-47NL provide temperature control with low pressure drop. The T-47NL incorporates dual check valves to prevent crossflow and integral screens to filter out debris. A cap is included for three port applications.
Legend Valve T-47NL Series 115-282NL Undersink Thermostatic Mixing Valve, 3/8 in Nominal, Compression, 3-Port/Way
BrandLegend Valve
MFG #115-282NL
