ADA Compliant|EN 1433|Heelproof Compliant

• MEA polymer concrete channels with galvanized and stainless steel edge rails (4 mm THK) and ductile iron edge rails (7 mm THK) as per EN 1433 High strength of the drainage channel body enables load class A 15 kN to load class F 900 kN Optimized flow cross section promotes self-cleaning Deep-seated anchorage bays in the drainage channel body ensures mechanical attachment to the concrete encasement

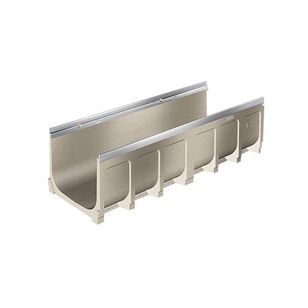

MIFAB®'s T1800-PB-13 Series channels shall be 39.4 in (1000 mm) long with a 12 in (300 mm) internal width. Interconnecting channels sections are made from high strength polymer concrete and available in sloping and non-sloping (neutral) channels. Each channel comes with a standard galvanized steel edge rail which is mechanically embedded in the channel. Installation devices, plastic end cap/outlet cap and catch basins are available accessories. System comes complete with 4 in preformed bottom outlets at neutral locations. Grates (separate specification sheets) are available in load class A to E in a variety of materials. Grates utilize the patented "clipfix" locking mechanism.
