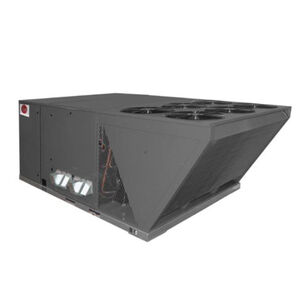

Rheem® Eclipse Series RKNL-H180CS35E Electric Heat Package Unit, 180000 Btu/hr Cooling, 350000 Btu/hr Heating Input
Rheem® Eclipse Series RKNL-H180CS35E Electric Heat Package Unit, 180000 Btu/hr Cooling, 350000 Btu/hr Heating Input
Rheem® Electric Heat Package Unit, RKNL-H, Classic Series, H180CS35E Model, 180000 Btu/hr Cooling, 350000 Btu/hr Heating Input BTU Rating, 208/230 VAC Voltage Rating, 81 A Amperage Rating, 52.75 kW Wattage, 1/3 hp Outdoor Fan, 5 hp Indoor Fan HP Rating, 1075 rpm Outdoor Fan, 1725 rpm Indoor Fan Rotational Speed, 60 Hz Frequency Rating, 3 ph Phase, (2) Scroll Compressor Type, 6000 cfm Rating, 11.1 EER Rating, 15 ton Tonnage, R-410A, HFC Refrigerant Type, 91 dBA Decibel Rating, Electric Ignition Type, High Static VFD Belt Drive Type, Outdoor Coil - 53.3 sq-ft Face Area, 22 Fins/in, Indoor Coil - 26.67 sq-ft Face Area, 18 Fins/in Coil Rating, Connection Type: 1 in Drain, Steel, Galvanized, Baked Enamel-Coated, 125 deg F Ambient Temperature Rating, 152-1/16 in L x 85-29/32 in W x 57 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$58,454.28 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating81
ApplicationFor low temperature use
CFM Rating6000
Coil RatingOutdoor Coil - 53.3 sq-' Face Area, 22 Fins/", Indoor Coil - 26.67 sq-' Face Area, 18 Fins/"
Compressor Type(2) Scroll
Connection Type1 " Drain
Decibel Rating91
Dimensions152-1/16 " L x 85-29/32 " W x 57 " H
Drive TypeHigh Static VFD Belt
EER Rating11.1
FinishGalvanized, Baked Enamel-Coated
Frequency Rating60
HP Rating1/3 hp Outdoor Fan, 5 hp Indoor Fan
Ignition TypeElectric
Input BTU Rating180000 Btu/hr Cooling, 350000 Btu/hr Heating
MaterialSteel
ModelH180CS35E
Phase3
Refrigerant TypeR-410A, HFC
Rotational Speed1075 rpm Outdoor Fan, 1725 rpm Indoor Fan
SeriesRKNL-H, Classic
Temperature Rating125 deg F Ambient
Tonnage15
Voltage Rating208/230
Wattage52.75
Additional Information
AHRI Certified, ASHRAE 90.1-2010 Compliant, C/US UL Listed, Energy Star Certified
Features & Benefits
- Complete factory charged, wired and run tested Scroll compressors with internal line break overload and high-pressure protection Convertible air flow TXV refrigerant metering device High pressure and low pressure/loss of charge protection standard on all models Solid core liquid line filter drier One-slab, single pass designed evaporator and condenser coils facilitate easy cleaning for maintained high efficiencies Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream Hinged major access door with heavy-duty gasketing, 1/4 in turn latches and door retainers, slide out Indoor fan assembly for added service convenience Powder paint finish meets ASTMB117 steel-coated on each side for maximum protection, G90 galvanized Base pan with drawn supply and return opening for superior water management Forkable base rails for easy handling and lifting, one-point electrical and gas connections Internally sloped slide out condensate pan conforms to ASHRAE 62 standards High performance belt drive motor with variable pitch pulleys and quick adjust belt system Permanently lubricated evaporator, condenser and gas heat inducer motors Condenser motors are internally protected, totally enclosed with shaft down design 2 in filter standard with slide-out design, two-stage gas valve and direct spark ignition Tubular heat exchanger for long life and induced draft for efficiency and reliability Solid-state furnace control with on board diagnostics, 24 V control system with resettable circuit breakers Colored and labeled wiring
