• Patented Flow Cone eliminates recirculation zones, directing flow toward the pump, improving flow conditioning and maximizing pump efficiency retention Space saving elbow design facilitates a close transition between return piping and pump suction, eliminating the need for straight lengths of pipe and separate long radius elbows or reducing elbows Full length straightening vanes assure uniform flow pattern for pump inlet Large diameter orifice cylinder prevents debris from entering pump suction while maintaining low pressure drop Fine mesh throwaway start-up strainer assures cleaner, more trouble-free system Optional pressure/temperature ports permit checking of system conditions and verification of start-up strainer presence Completely removable internals and plug/blow down connection for fast and easy routine maintenance

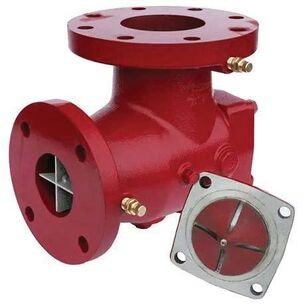

The Bell & Gossett Suction Diffuser Plus is an angle pattern straightening fitting that enables the pumping system to function at the most optimum performance parameters. It conditions the flow into the pump suction to ensure the highest pump efficiency retention.
