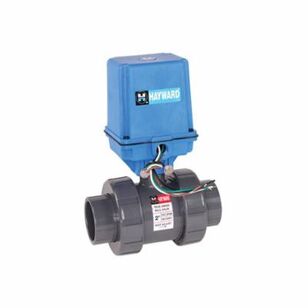

HAY EATB1200STE 2IN PVC BALL VLV
HAY EATB1200STE 2IN PVC BALL VLV
HAYWARD® True Union Ball Valve, Actuated, Series: EA Series, 2 in Nominal, 115 VAC Electrical Rating, Socket/Threaded End Style, 225 psi Pressure, 70 deg F, Full Port, 8 in Inlet to Outlet Length, 10.1 in Top to Inlet Center, PVC Body, PTFE Trim, EPDM Seal Softgoods
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHAYWARD®
Body MaterialPVC
Electrical Ratings115
End StyleSocket/Threaded
IndustryLeisure
Inlet to Outlet Length8"
Nominal Size2"
Port TypeFull
Pressure Rating225
SeriesEA Series
Softgoods MaterialEPDM Seal
Temperature Rating70
Top to Inlet Center10.1"
Trim MaterialPTFE
TypeActuated
Additional Information
Class 12454 per ASTM D1784|ISO 9001:2008|ANSI/NSF 61 and UL/CSA Listed
Features & Benefits
- Fully serviceable Double O-ring stem seals Thermoplastic NEMA 4/4X enclosure 2.5 Sec, 90 deg cycle time Thermal overload protection Permanently lubricated gear train Actuator brake No need for manual adjustments Blind leads connection Unidirectional, not reversing 250 psi at 70 deg F non-shock
Documents
Marketing Information
EATB Series is a package unit of an EA actuator and a TB Series ball valve. The EA actuator is a 115 VAC full featured electric actuator with a TB Series PVC ball valve EPDM O-rings. Socket and threaded end connections come with the valve.
HAY EATB1200STE 2IN PVC BALL VLV
BrandHAYWARD®
MFG #EATB1200STE
Keller #1251394
