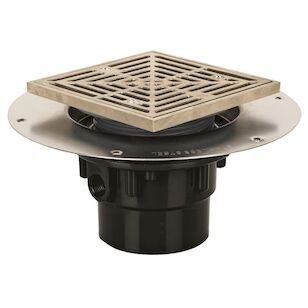

SIOUX 822-3ANQ 3IN ABS WD DK DRAIN
SIOUX 822-3ANQ 3IN ABS WD DK DRAIN
Sioux Chief Floor Drain With Deck Flange, 822 Series, 3 x 4 in Nominal, Hub Connection, 20 gpm Flow Rate, ABS Drain, 5-3/8 in L x 5-3/8 in W Grid, Nickel Bronze Grid, 5-7/8 in Dia x 4-3/8 in H, Domestic/Import: Import, Additional Information: Square Shape, 12.75 sq-in Strainer Free Area
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$116.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Additional InformationSquare Shape, 12.75 sq-" Strainer Free Area
Connection TypeHub
Dimensions5-7/8 " Dia x 4-3/8 " H
Domestic/ImportImport
Drain MaterialABS
Flow Rate20
Grid MaterialNickel Bronze
Grid Size5-3/8 " L x 5-3/8 " W
Nominal Size3 x 4
Series822 Series
Additional Information
ASME A112.6.3-2001
Features & Benefits
- Outlet welds over 2" and inside 3", or over 3" and inside 4" Head adjusts up to 3/4" above flush to accommodate most flooring types Installs easily in cored concrete floors or corrugated decks Great for loft remodels, second floor utility rooms/laundry rooms, etc
Documents
Marketing Information
Sioux Chief 822 series adjustable floor drain shall be used where necessary in drainage systems. Floor drain shall have an 18 gauge stainless steel deck/mounting flange and ABS/PVC body with Sch. 40 hub connection. Floor drain shall allow adjustment of 3/4" above the deck flange. Strainer shall be heel-proof and meet applicable load requirements for intended use. Trap primer port shall be threaded 1/2" FIP for optional connection. Designed in accordance with ASME A112.6.3-2001.
SIOUX 822-3ANQ 3IN ABS WD DK DRAIN
BrandSioux Chief
MFG #822-3ANQ
Keller #1252058
My Part ##
Last Ordered#
$116.00Â /Â ea
