Samsung

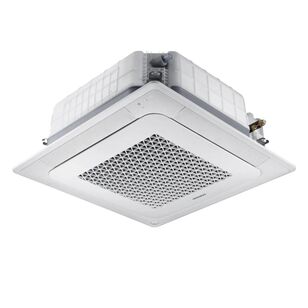

Samsung WindFree™ DVM S Series PC4NUFMUN AM006BN4PCH/AA 4-Way Cassette, 208 - 230 V, 0.17 A, 1 ph -Phase, Polystyrene
Samsung
Samsung WindFree™ DVM S Series PC4NUFMUN AM006BN4PCH/AA 4-Way Cassette, 208 - 230 V, 0.17 A, 1 ph -Phase, Polystyrene
MFG #AM006BN4PCH/AA
Item #1252109
Mfr. Part #AM006BN4PCH/AA
UPC #
Samsung WindFree™ 4-Way Cassette, Series: DVM S Series, Model: PC4NUFMUN, 208 - 230 V, 0.17 A, 20 W, 60 Hz, 1 ph Phase, 3 Fan Speeds, 36000 Btu/hr Cooling, 40000 Btu/hr Heating, 547 cfm, Flared Connection, 1/4 in, 1/2 in Connection, R-410A Refrigerant, Tonnage: 0.52 ton, 26 dBA, 28 dBA, 30 dBA Sound Level, Polystyrene, White, 33-1/16 in Overall Length, 33-1/16 in Overall Width, 9-11/16 in Overall Height, For Use With: Samsung DVM S2, DVM S Water and DVM S Eco Systems, Additional Information: 2022 Version, Indoor Unit, Premium Feature, Heat Pump and Heat Recovery Mode
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,187.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional Information2022 Version, Indoor Unit, Premium Feature, Heat Pump and Heat Recovery Mode
Amperage Rating0.17
BTU Rating36000 Btu/hr Cooling, 40000 Btu/hr Heating
CFM Rating547
ColorWhite
Color/FinishWhite
Connection Size1/4 ", 1/2 "
Connection TypeFlared
Frequency Rating60
IndustryHVAC
MaterialPolystyrene
ModelPC4NUFMUN
Number of Fan Speeds3
Overall Height9-11/16
Overall Length33-1/16
Overall Width33-1/16
Phase1
Power Rating20
Refrigerant TypeR-410A
SeriesDVM S Series
Sound Level26 dBA, 28 dBA, 30 dBA
Suitable For Use WithSamsung DVM S2, DVM S Water and DVM S Eco Systems
Tonnage0.52
Voltage Rating208 - 230
Additional Information
ETL Listed|UL 1995
Features & Benefits
- Electro-static, washable, pleated filters as standard (included with fascia panel) Built in condensate pump with maximum 29" lift from the bottom of the unit, check valve, and float switch that disables indoor unit during overflow detection Knock-out for outside air capability Fascia panel shall have LED indicator lights and 4 motorized louvers with independent control (32 deg - 65 deg louver control range) High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection WindFree™ function will close the supply air outlet louver while in cooling mode to gently disperse cool air into the space without blowing directly onto occupants. The WindFree™ feature is optional and can be enabled using central or local control options (MWR-SH11UN, MWR-WE13N, MWR-WE13UN, MWR-WG00*N, and AR-EH03U only)
Documents
Marketing Information
Samsung's WindFree™ 4-Way Cassette uses thousands of micro holes to distribute air throughout the space without blowing directly on the occupants. You can activate Wind-Free™ cooling by pressing the Wind-Free™ button on the controller. S. The WindFree™ unit delivers an air current that is under 0.15 m/s while in Wind-Free™ mode. Air velocity that is below 0.15 m/s is considered "still air" as defined by ASHRAE 55-2013 (American Society of Heating, Refrigerating, and Air-Conditioning Engineers).
