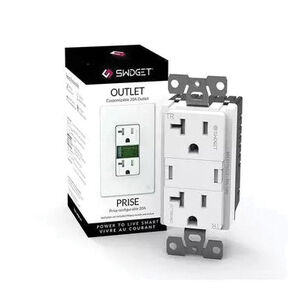

Panasonic Swidget™ R1020SWA Smart Home Enabled Device Duplex Outlet, 125 VAC, 20 A, 2-Outlet, NEMA 5-20R Outlet
Panasonic Swidget™ R1020SWA Smart Home Enabled Device Duplex Outlet, 125 VAC, 20 A, 2-Outlet, NEMA 5-20R Outlet
Panasonic Smart Home Enabled Device Duplex Outlet, 125 VAC, 20 A, 1 hp, 2 Outlets, NEMA 5-20R Outlet, NEMA Rating: NEMA 5-20, White Housing, 14 to 104 deg F, 1.814 in Length, 1.622 in Width, 2.803 in Height, Additional Information: Pre-Stripped Wire Leads (Line/Neutral), 12 AWG (Stranded), Ground Screw Wiring
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$86.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandPanasonic
Additional InformationPre-Stripped Wire Leads (Line/Neutral), 12 AWG (Stranded), Ground Screw Wiring
Amperage Rating20
Height2.803
HP Rating1
IndustryHVAC
Length1.814
NEMA RatingNEMA 5-20
Number Of Outlets2
Outlet TypeNEMA 5-20R
Temperature Rating14 to 104
Voltage Rating125
Width1.622
Additional Information
CSA C22.2 No.223|UL 1310|UL 508|UL 94
Features & Benefits
- Universal compatibility to work with all wireless platforms Independent direct power monitoring for each of the two receptacles Wide range of customization and feature options with plug and play Swidget™ inserts User-safe with tamper-resistant outlets and a certified class 2 power output
Documents
Marketing Information
The Swidget™ configurable 20 A outlet is a duplex 125 VAC 20 A modular smart home enabled device (NEMA 5-20R compliant). The modularity of the device allows for easy after-market installation of a Swidget™ insert that can enable the wireless control and independent power monitoring of the receptacle, in addition to providing other sought-after functions like IAQ, motion or lighting. 20 A outlet must have the ability to allow function specific Swidget™ to be installed/removed/swapped making this platform the optimal choice for renovations and new construction. Outlet installs like a standard wall receptacle using the same wiring. Installation of any of the multiple Swidget™ module types turns this into a powerful and flexible smart home device. Swidget™ dimmer switch must have the ability to allow interchangeable Swidget™ inserts to be installed, removed or replaced.
