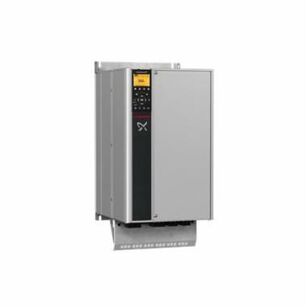

Grundfos 99616723 Frequency Converter, 75 hp Motor Output, 380 to 440/441 to 500 V Input, 106 to 105 A Input
Grundfos 99616723 Frequency Converter, 75 hp Motor Output, 380 to 440/441 to 500 V Input, 106 to 105 A Input
Grundfos Frequency Converter, 75 hp Motor Output, 50/60 Hz Output, 380 to 440/441 to 500 V Input, 106 to 105 A Input Current, 3 ph, IP20, Wall Mount, 21.7 in H x 12.1 in W x 13.1 in D, Additional Information: 5 to 95% Humidity, 55 kW Power Rating, 32 to 113 deg F Temperature Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$10,254.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional Information5 to 95% Humidity, 55 kW Power Rating, 32 to 113 deg F Temperature Rating
Dimensions21.7 " H x 12.1 " W x 13.1 " D
Enclosure TypeIP20
IndustryHydronics
Input Current106 to 105
Input Voltage380 to 440/441 to 500
Motor Output75
Mounting TypeWall
Output Frequency50/60
Phase3
Additional Information
CE Marked | C-Tick Approved | cULus Listed
Features & Benefits
- Grundfos E-pump functionality and user interface Application and pump family related functions Increased comfort compared to fixed speed pumps Very easy installation and commissioning compared to standard frequency converters Speed control of pumps up to 250 kW Speed control of pumps installed in potentially explosive environments RS-485 GENIbus An analog 0 to 10 V input for external set point An analog 0/4 to 20 mA input for sensor Four digital inputs for various functions, for instance external start/stop Two signal relays (C/NO/NC)
Documents
Marketing Information
CUE is a complete range of external frequency converters designed for speed control of a wide range of Grundfos pumps. CUE has a built-in PI controller and offers the same functionality and user interface as Grundfos E-pumps. CUE solutions can thus be seen as an extension to the E-pump range.
Grundfos 99616723 Frequency Converter, 75 hp Motor Output, 380 to 440/441 to 500 V Input, 106 to 105 A Input
BrandGrundfos
MFG #99616723
Keller #1256789
My Part ##
Last Ordered#
$10,254.00Â /Â ea
