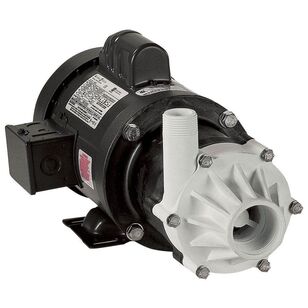

Little GIANT® 587400 Magnetic Drive Pump, 53 gpm, 11.8 A, 115/230 VAC, 3/4 hp
Little GIANT® 587400 Magnetic Drive Pump, 53 gpm, 11.8 A, 115/230 VAC, 3/4 hp
Little GIANT® Magnetic Drive Pump, Model: TE-7-MD-SC, 1-1/2 in Suction, 1 in Discharge, 53 gpm, 11.8 A, 115/230 VAC, 3/4 hp, 1 ph -Phase, 50/60 Hz, 2850 to 3450 rpm Speed, 191.93 ft Max Feet of Head, 1230 W, 150 deg F Max Temperature, 25.5 psi Working Pressure, Polypropylene Impeller, Polypropylene Body, 17.3 in L x 8 in W x 8.3 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,886.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLittle GIANT®
Amperage Rating11.8
Body MaterialPolypropylene
Dimensions17.3 " L x 8 " W x 8.3 " H
Discharge Size1"
Flow Rate53
Frequency Rating50/60
HP Rating3/4
Impeller MaterialPolypropylene
IndustryPlumbing
Maximum Feet of Head191.93 ft
Maximum Temperature150
ModelTE-7-MD-SC
Phase1
Power Rating1230
Speed Rating2850 to 3450
Suction Size1-1/2"
Voltage Rating115/230
Working Pressure25.5
Additional Information
cCSAus Certified|UR Listed
Features & Benefits
- 1.1 specific gravity Nitrile O-ring Thermally protected, totally enclosed, fan cooled, split phase motor Ball bearing
Documents
Marketing Information
The Little Giant MD-SC series features seal less magnetic drives and are designed for inline, non-submersible use. Volute and impeller are glass filled polypropylene for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and reliable service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start up and stop of pump.
Little GIANT® 587400 Magnetic Drive Pump, 53 gpm, 11.8 A, 115/230 VAC, 3/4 hp
BrandLittle GIANT®
MFG #587400
Keller #1258362
