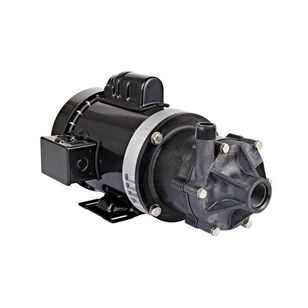

Little GIANT® 586604 Magnetic Drive Pump, 38 gpm, 4.7 to 11.6 A, 115/230 VAC, 1/2 hp
Little GIANT® 586604 Magnetic Drive Pump, 38 gpm, 4.7 to 11.6 A, 115/230 VAC, 1/2 hp
Little GIANT® Magnetic Drive Pump, Model: TE-6-MD-HC, 1 in Suction, 3/4 in Discharge, 38 gpm, 4.7 to 11.6 A, 115/230 VAC, 1/2 hp, 1 ph -Phase, 50/60 Hz, 2850 to 3450 rpm Speed, 51 ft Max Feet of Head, 835 W, 200 deg F Max Temperature, 22.1 psi Working Pressure, Polyphenylene Sulfide Impeller, Polyphenylene Sulfide Body, 16.3 in L x 8.8 in W x 8.6 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,945.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLittle GIANT®
Amperage Rating4.7 to 11.6
Body MaterialPolyphenylene Sulfide
Dimensions16.3 " L x 8.8 " W x 8.6 " H
Discharge Size3/4"
Flow Rate38
Frequency Rating50/60
HP Rating1/2
Impeller MaterialPolyphenylene Sulfide
Maximum Feet of Head51 ft
Maximum Temperature200
ModelTE-6-MD-HC
Phase1
Power Rating835
Speed Rating2850 to 3450
Suction Size1"
Voltage Rating115/230
Working Pressure22.1
Additional Information
cCSAus Certified|UR Listed
Features & Benefits
- 1/2 hp TEFC split phase motor Glass filled polyphenylene sulfide volute and backplate 1.1 specific gravity Fluoroelastomer (FKM) O-ring Ceramic thrust washers and shaft Run dry capability up to 8 hr
Documents
Marketing Information
The TE-6-MD-HC is designed to transfer highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other highly corrosive chemicals and solutions compatible with the pump's material construction. The pump also utilizes pure carbon bushing in the impeller to enable the pump to run dry for periods up to 8 hr.
