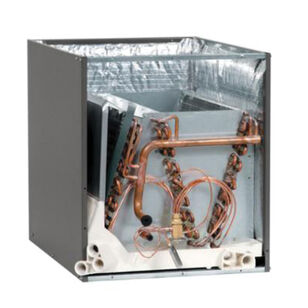

Rheem® Ovation Series RCFL-HM2414CC Cased Evaporator Coil, Cased Coil, 2 ton, 18000 to 24000 Btu/hr, 600 to 1000 cfm
Rheem® Ovation Series RCFL-HM2414CC Cased Evaporator Coil, Cased Coil, 2 ton, 18000 to 24000 Btu/hr, 600 to 1000 cfm
Rheem® Cased Evaporator Coil, RCFL Series, 18000 to 24000 Btu/hr BTU Rating, 600 to 1000 cfm Rating, 2 ton Tonnage, R-410A Refrigerant Type, Cased Coil Type, 3/8 in, 3/4 in Connection, Connection Type: Sweat, 2 Number of Rows, 4.56 sq-ft Face Area, 16 in Fin Size, Copper, Gray, 23-3/16 in H x 14 in W x 21-11/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$679.98 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
ApplicationFor air conditioner, heat pump, gas and oil furnaces
BTU Rating18000 to 24000
CFM Rating600 to 1000
Coil TypeCased
ColorGray
Connection Size3/8 ", 3/4 "
Connection TypeSweat
Dimensions23-3/16 " H x 14 " W x 21-11/16 " D
Face Area4.56
Fin Size16
IncludesUniversal Duct Flanges
MaterialCopper
Number of Rows2
Refrigerant TypeR-410A
SeriesRCFL Series
Tonnage2
Additional Information
AHRI Certified, ANAB Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Constructed of aluminum fins bonded to internally grooved copper tubing Tin plated copper tubing in the finned area for superior corrosion resistance in harsh environments Coils are tested at the factory with an extensive refrigerant leak check Ideally suited for new installations or add-on air-conditioning Feature two sets of 3/4 in NPT condensate drain connections for ease of connection Condensate drain pan is constructed of high-grade, heat-resistant, corrosion-free thermal-setting material Compatible with germicidal light system Bi-directional airflow eliminates the need to switch any internal components from horizontal left to right Unique drain pan design maximizes application flexibility and condensate removal Product generation Third design variation
Rheem® Ovation Series RCFL-HM2414CC Cased Evaporator Coil, Cased Coil, 2 ton, 18000 to 24000 Btu/hr, 600 to 1000 cfm
BrandRheem®
MFG #RCFL-HM2414CC
Keller #1258896
